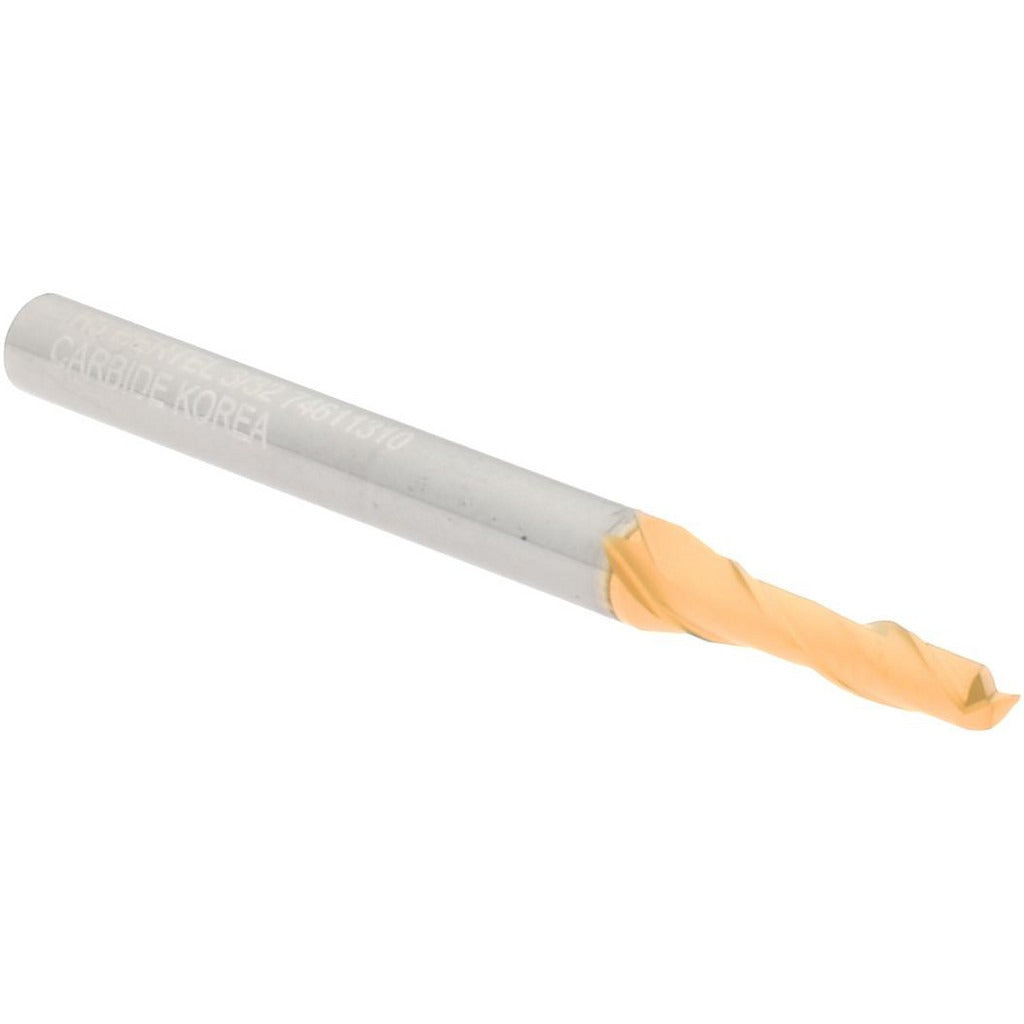

Hertel 750558 Square End Mill 3/32 Inch 2 Flute Solid Carbide

Product Description

The HERTEL 750558 is a solid carbide square end mill designed for precision milling in metal fabrication, tool-and-die, and general machining applications. It measures 3/32 inch (0.0938 inch) in cutting diameter with a 3/8 inch length of cut and a 1/8 inch shank diameter, giving it a compact profile suited for fine-detail slot milling, profiling, and light plunge cuts. The two-flute configuration provides efficient chip evacuation in tighter cavities. A titanium nitride (TiN) coating improves surface hardness and heat resistance at the cutting edge. Overall length is 1-1/2 inches. This tool is installed and used by machinists and tool-and-die technicians on vertical machining centers and CNC mills.

This end mill is well suited to small-feature milling in ferrous and non-ferrous metals, plastics, and composites. The 30-degree spiral helix angle promotes smooth cutting action and reduces chatter during profiling passes. The centercutting geometry allows direct plunge entry without a pre-drilled pilot hole, expanding its usefulness in die work, cavity milling, and multi-axis finishing passes. It is a single-end tool with right-hand cut and right-hand spiral flute orientation, which is standard for conventional CNC milling setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in precision milling
• TiN finish increases surface hardness and extends tool life at elevated cutting temperatures
• 30-degree helix angle reduces cutting forces and minimizes chatter
• Centercutting design supports direct plunge entry without a pilot hole
• Two-flute spiral configuration promotes chip clearance in narrow slots and cavities
• Right-hand cut and right-hand spiral - compatible with standard CNC mill spindle rotation

Compatibility

Designed as an OEM-style replacement or standard tooling option for 1/8 inch collets and tool holders on CNC vertical machining centers and manual knee mills accepting 1/8 inch shank end mills.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the spindle before loading or changing the tool. Seat the 1/8 inch shank fully and evenly in the collet or end mill holder and torque the collet nut to the tool-holder specification. Verify runout with a dial indicator before beginning the cut, as runout errors on small-diameter carbide tools accelerate chipping and breakage.
