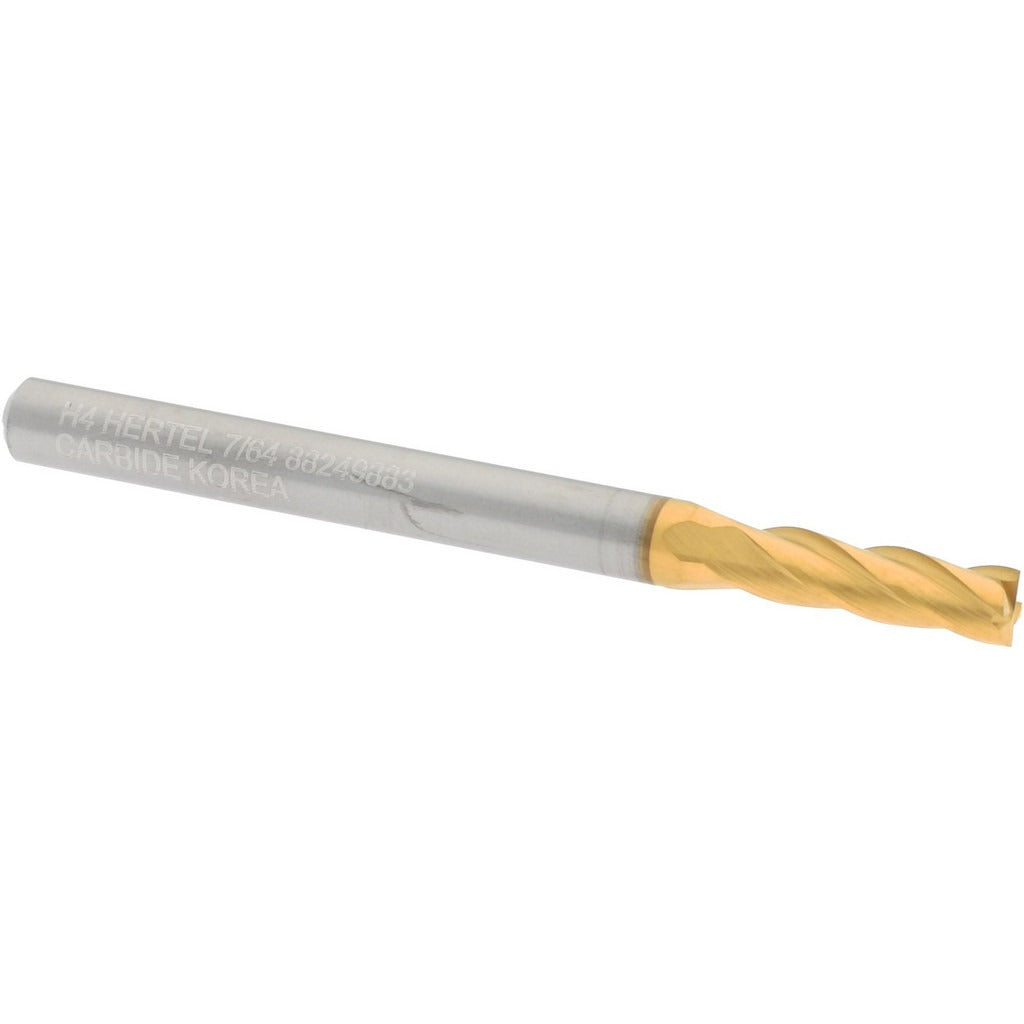

Hertel 750540 Square End Mill 7/64 in 4 Flute Solid Carbide

Product Description

The HERTEL 750540 is a solid carbide square end mill designed for precision milling operations in metal, composites, and other hard materials. With a 7/64 inch (0.1094 inch) cutting diameter and four spiral flutes ground at a 30-degree helix angle, this end mill delivers clean, efficient chip evacuation and smooth surface finishes. The TiN (titanium nitride) coating increases surface hardness and extends tool life in abrasive cutting conditions. A 3/8 inch length of cut and 1/8 inch shank diameter make it well suited for tight-clearance work. It is installed by machinists and toolroom technicians using CNC machining centers or manual milling machines.

This end mill is suited for light-to-medium milling applications where a small-diameter, high-precision tool is required. The centercutting design allows plunge cutting in addition to peripheral and slot milling. Right-hand cut and right-hand flute configuration are standard for conventional CNC and manual mill setups. Typical applications include slot milling, profiling, and contouring in ferrous and non-ferrous materials across job shop, tool-and-die, and maintenance machining environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• TiN finish improves surface hardness and reduces friction during cutting
• 4-flute spiral design at 30-degree helix angle for efficient chip removal
• Centercutting capability allows direct plunge entry into workpieces
• Right-hand cut, right-hand flute — compatible with standard mill spindle rotation
• 1/8 inch shank fits standard collets and end mill holders widely available in the trade

Compatibility

Designed as a standard replacement or stock end mill for CNC machining centers and manual milling machines accepting a 1/8 inch shank collet or end mill holder.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in an e-stop or tool-change state. Seat the shank fully into the collet or end mill holder and torque the retention mechanism per the toolholder manufacturer's specification. Inspect the cutting edges and coating for chips or wear before mounting. Follow applicable shop safety procedures and machine guarding requirements during setup and operation.
