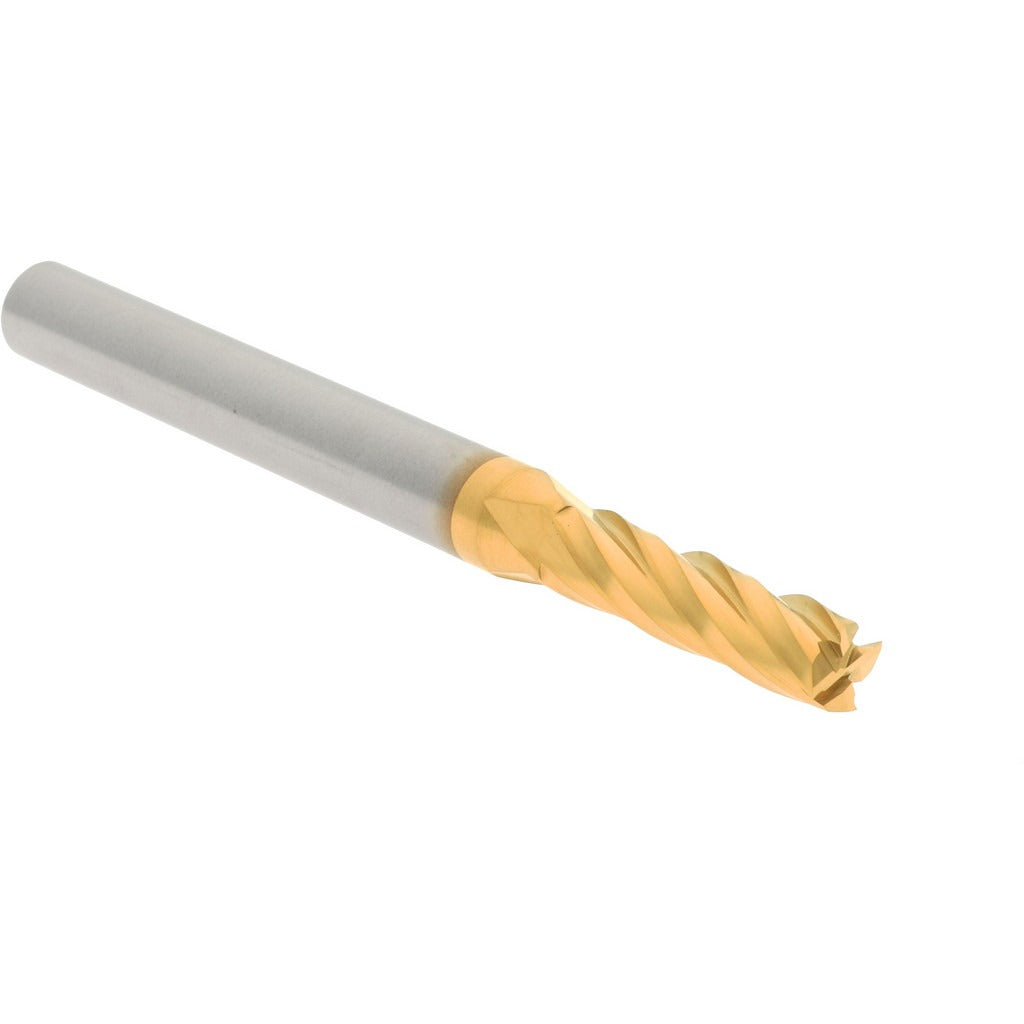

Hertel 750311 Square End Mill 5/32 in 4 Flute Solid Carbide

Product Description

The HERTEL 750311 is a solid carbide square end mill designed for precise milling operations in metalworking and machining applications. It features a 5/32-inch (0.1563-inch) cutting diameter with a 9/16-inch (0.5625-inch) length of cut, making it well suited for slotting, profiling, and contouring in tight workpiece geometries. The 4-flute spiral design with a 30-degree helix angle promotes efficient chip evacuation and a smooth surface finish. A titanium nitride (TiN) coating adds surface hardness and extends tool life in ferrous and non-ferrous materials. Licensed machinists and CNC operators install this tool in standard end mill holders or collet chucks on vertical and horizontal machining centers.

This end mill is intended for use in production machining environments where small-diameter precision cutting is required. The centercutting geometry allows the tool to plunge directly into the workpiece, enabling ramping and pocket-milling operations without a pre-drilled entry point. The 3/16-inch shank diameter and 2-inch overall length make it compatible with standard toolholding systems on benchtop and full-size CNC mills. Right-hand cut and right-hand flute orientation are standard for conventional and climb milling passes.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• TiN finish increases surface hardness and reduces tool wear
• 4-flute spiral geometry with 30-degree helix angle for efficient chip flow
• Centercutting design allows direct plunge entry into the workpiece
• Right-hand cut and right-hand flute orientation for standard milling setups
• No chipbreaker or variable helix — consistent geometry for smooth, predictable cuts

Compatibility

Designed as a standard small-diameter square end mill for use in CNC machining centers and manual mills equipped with collet chucks or end mill holders accepting a 3/16-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the spindle before inserting or removing the tool from the holder. Ensure the shank is fully seated and the collet or set screw is torqued to the toolholder manufacturer specification. Inspect the cutting edges for chips or wear before each use, as solid carbide tools can fracture if run with damaged geometry.
