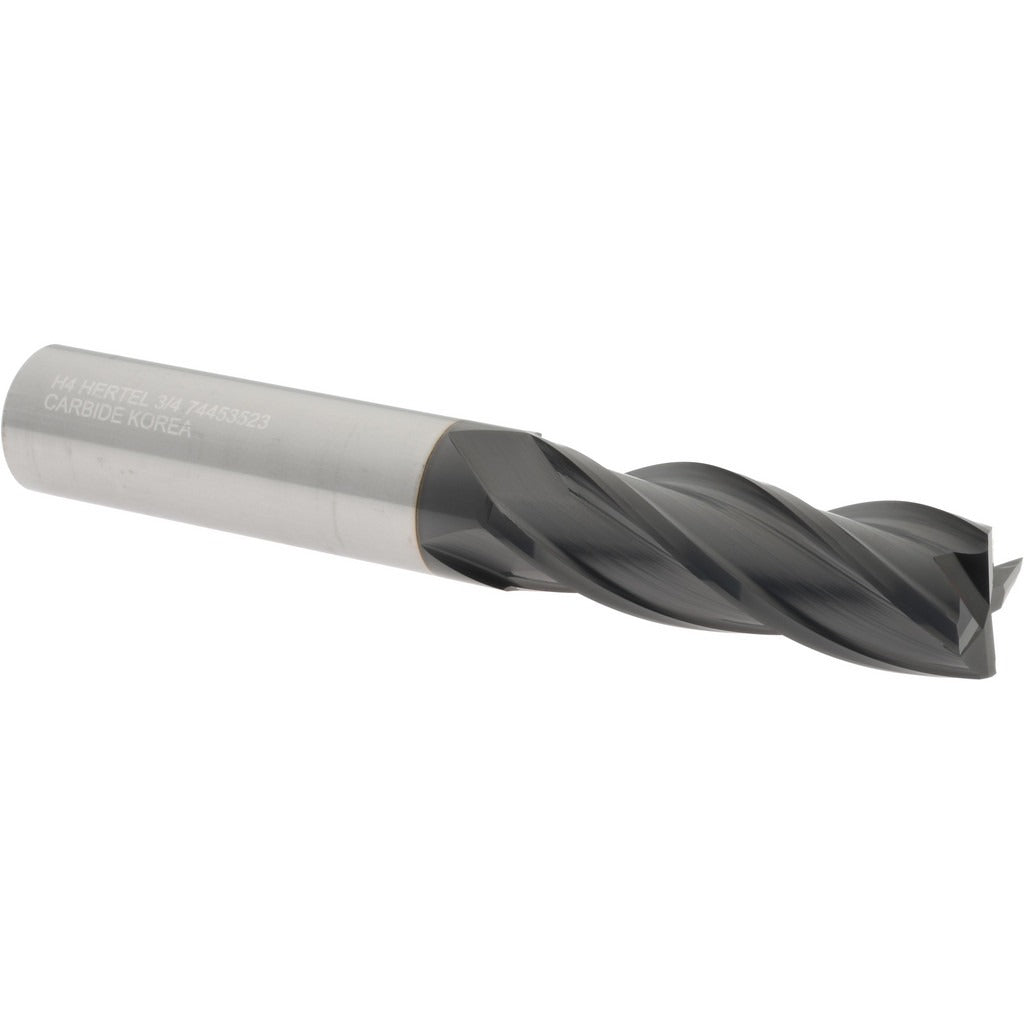

Hertel 750268 3/4 Inch Carbide Square End Mill 4 Flute

Product Description

The HERTEL 750268 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. Built from micrograin carbide with a titanium carbonitride (TiCN) finish, it delivers extended tool life in demanding cutting conditions. The 4-flute, right-hand spiral geometry with a 30-degree helix angle promotes efficient chip evacuation and surface finish quality. At 0.75 inches in diameter with a 2.25-inch length of cut, this is a long-series end mill suited for applications requiring deeper reach without sacrificing rigidity. Centercutting capability allows direct plunge entry into the workpiece.

This end mill is used in general-purpose milling, slotting, profiling, and contouring on machining centers and manual mills. The long-series length of cut makes it appropriate for deep pocket milling and stepped features where a standard-length tool would not reach. The TiCN coating reduces friction and heat buildup, making it effective in medium to high-speed cutting of steel, alloy steel, cast iron, and similar materials. It is installed and operated by machinists and CNC programmers in job shop, production, and toolroom environments.

Key Features

• Micrograin solid carbide construction for wear resistance and edge retention
• TiCN coating reduces friction and extends tool life in ferrous materials
• 30-degree helix spiral flute promotes smooth cutting action and chip flow
• Centercutting design allows plunge milling without a pre-drilled entry point
• Right-hand cut and right-hand flute configuration for standard spindle use
• Long-series length of cut (2.25 inches) for deep pocket and stepped feature milling

Compatibility

Designed as a direct-fit replacement for standard 3/4 inch shank toolholders including ER collet chucks, end mill holders, and shrink-fit holders used on vertical machining centers, horizontal machining centers, and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist following machine tool manufacturer guidelines. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the shank to the full recommended insertion depth in the holder to avoid deflection or pullout under load. Verify runout with a dial indicator after clamping before commencing the cut.
