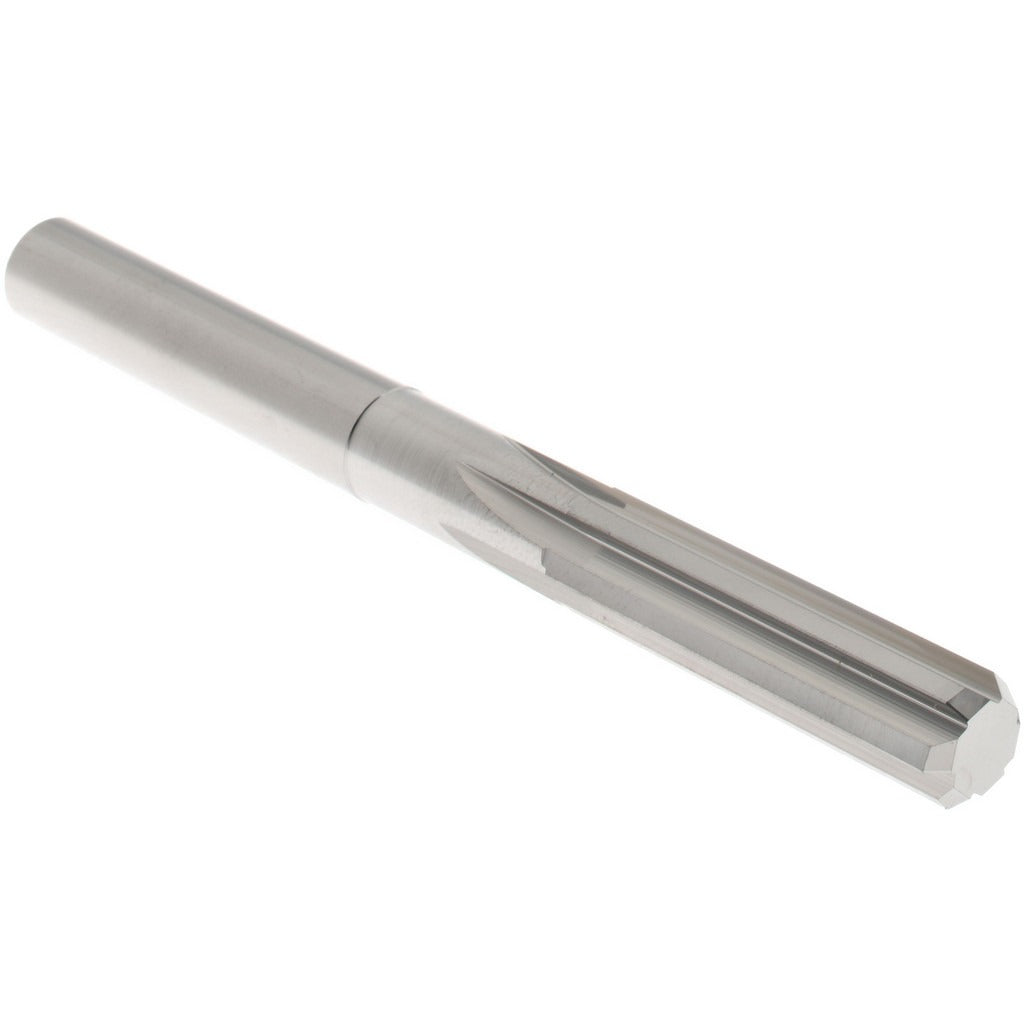

Hertel 45676095 Chucking Reamer 0.324 in Solid Carbide

Product Description

The HERTEL 45676095 is a solid carbide chucking reamer designed for precision hole finishing in metalworking applications. With a 0.324 inch diameter and a bright, uncoated finish, this reamer delivers tight dimensional accuracy on finish passes in drilled or bored holes. The straight flute geometry and right-hand cut configuration make it well suited for through-hole and short blind-hole reaming in a variety of ferrous and non-ferrous materials. Machinists and tool-and-die professionals reach for this tool when hole tolerance and surface finish are the primary concerns. It weighs 0.13 pounds and ships as a single unit.

This chucking reamer fits standard machining center and lathe operations where a straight-shank tool is required. The cylindrical straight shank seats securely in a drill chuck, collet, or floating reamer holder. The 1.25 inch flute length handles typical stock removal requirements for finish reaming at this diameter range. It is appropriate for job shops, production floors, and maintenance machining environments where repeatable hole sizing is required.

Key Features

• 0.324 inch cutting diameter for precision finish reaming
• Solid carbide construction for rigidity and wear resistance
• Straight flute design for stable cutting and easy chip evacuation
• Right-hand cut with 6 flutes for smooth, accurate bore finishing
• Straight-cylindrical shank for use in standard chucks and collets
• Bright, uncoated finish — no coating buildup affecting diameter tolerance

Compatibility

Designed as an OEM-style chucking reamer for use in manual lathes, CNC turning centers, and machining centers that accept straight-shank tooling at this diameter range.

Installation Notes

A licensed machinist or qualified toolroom professional should install and operate this reamer. Power down and lock out the machine spindle before changing tooling. Seat the shank fully and evenly in the chuck or collet before tightening to manufacturer-specified runout tolerances. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain hole finish quality.
