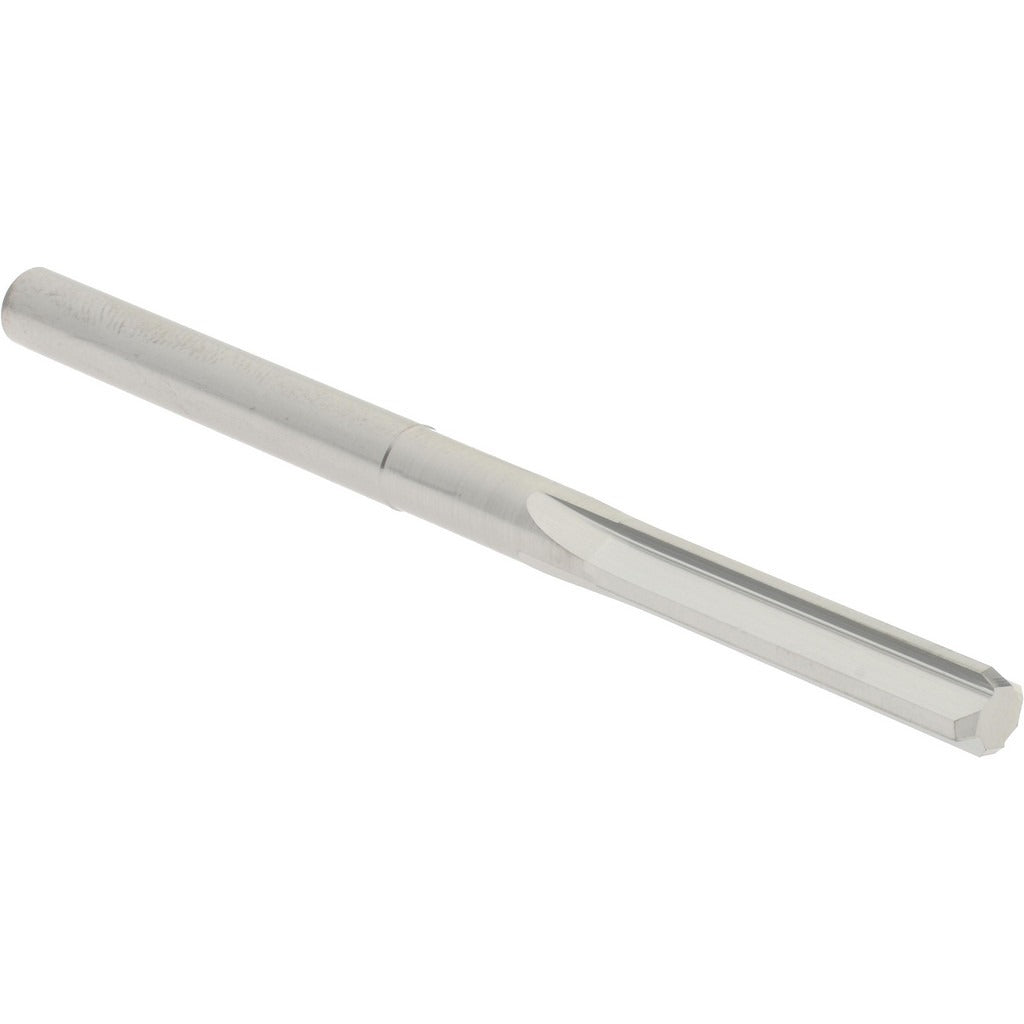

Hertel 45675162 Chucking Reamer 0.1975 in Solid Carbide

Product Description

The HERTEL 45675162 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a reamer diameter of 0.1975 inches and a 4-flute straight configuration, it removes minimal stock while producing tight-tolerance, smooth-bore holes. The bright polished finish reduces friction and aids chip evacuation. Overall length is 3 inches with a 1-inch flute length and a straight shank for secure chuck mounting. Right-hand cutting direction is standard. Licensed machinists and tool-and-die professionals install and operate this type of reamer in CNC machining centers, drill presses, and manual lathes.

This chucking reamer is suited for production and job-shop environments where close-tolerance hole sizing is required. The 0.1975-inch diameter falls within the 0.1500 to 0.1999 inch reamer diameter range, making it appropriate for finishing holes in steel, cast iron, aluminum, and similar machinable materials. The straight shank accepts standard drill chucks and collets without modification, streamlining setup time in both horizontal and vertical machine orientations.

Key Features

• Solid carbide construction for rigidity and extended tool life in abrasive materials
• Bright polished finish reduces friction and promotes clean chip flow
• 4-flute straight configuration delivers consistent surface finish and dimensional accuracy
• Right-hand cutting direction compatible with standard machine spindle rotation
• Straight shank fits standard drill chucks and collets
• 3-inch overall length with 1-inch flute length for controlled engagement in shallow to moderate depth holes

Compatibility

Designed as an OEM-style chucking reamer for use in CNC machining centers, drill presses, and lathes accepting straight-shank tooling with a 0.1975-inch reamer diameter.

Installation Notes

Installation and operation should be performed by a qualified machinist. Ensure the machine spindle is fully stopped and locked out before mounting or removing the reamer. Secure the straight shank firmly in the chuck or collet to the tool holder manufacturer's specified clamping torque. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain bore finish quality.
