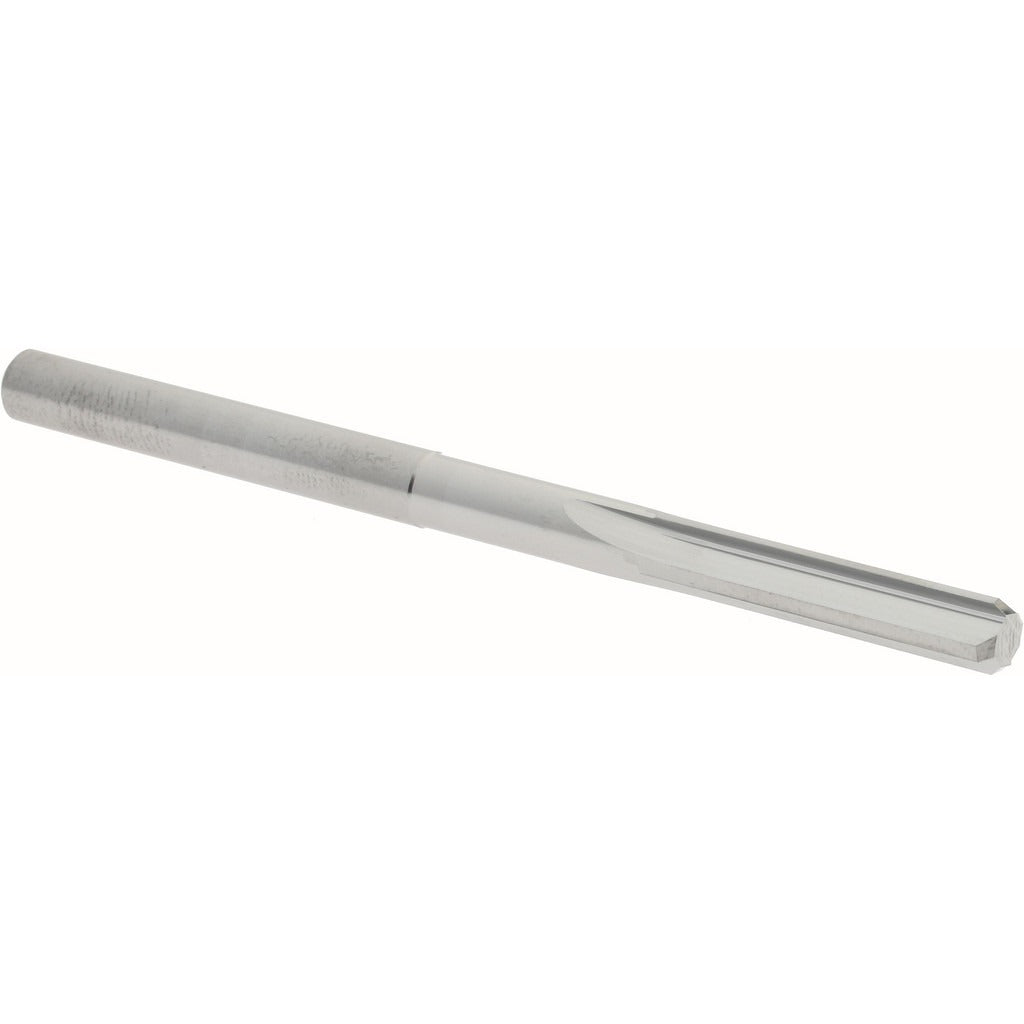

Hertel 45675022 Chucking Reamer 0.184 in Solid Carbide

Product Description

The HERTEL 45675022 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a reamer diameter of 0.184 inches and a 7/8-inch flute length, it delivers accurate final sizing of drilled or bored holes to tight tolerances. The straight shank is compatible with standard drill chucks and collet holders. Four straight flutes with a bright polished finish reduce friction and improve chip evacuation during the cut. At an overall length of 2.75 inches, it suits close-quarter and toolholder setups common on CNC machining centers and manual mills.

This reamer is intended for light stock removal to achieve precise hole diameters in the 0.1500 to 0.1999 inch range. It is suited for use in ferrous and non-ferrous metals where hole finish and dimensional accuracy are critical. Machinists, toolmakers, and precision CNC operators working in job shop, production, and maintenance environments will find it appropriate for both through-holes and blind-hole finishing where the straight flute geometry provides controlled cutting action.

Key Features

• Solid carbide construction for hardness and wear resistance in precision machining
• 0.184 inch reamer diameter within the 0.1500 to 0.1999 inch range
• Four straight flutes with bright polished finish for smooth chip flow and reduced cutting friction
• Right-hand cutting direction compatible with standard spindle rotation
• Straight shank fits standard drill chucks and collet systems
• Compact 2.75 inch overall length suits tight setups and short-reach toolholders

Compatibility

Designed as an OEM-style chucking reamer for use with standard straight-shank drill chucks and collet holders on CNC machining centers, knee mills, and drill presses performing precision hole finishing operations.

Installation Notes

This reamer is installed by a machinist or toolmaker into a compatible straight-shank chuck or collet holder. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain hole finish quality. Do not use this reamer for primary material removal; it is intended for finish reaming only with minimal stock left in the hole.
