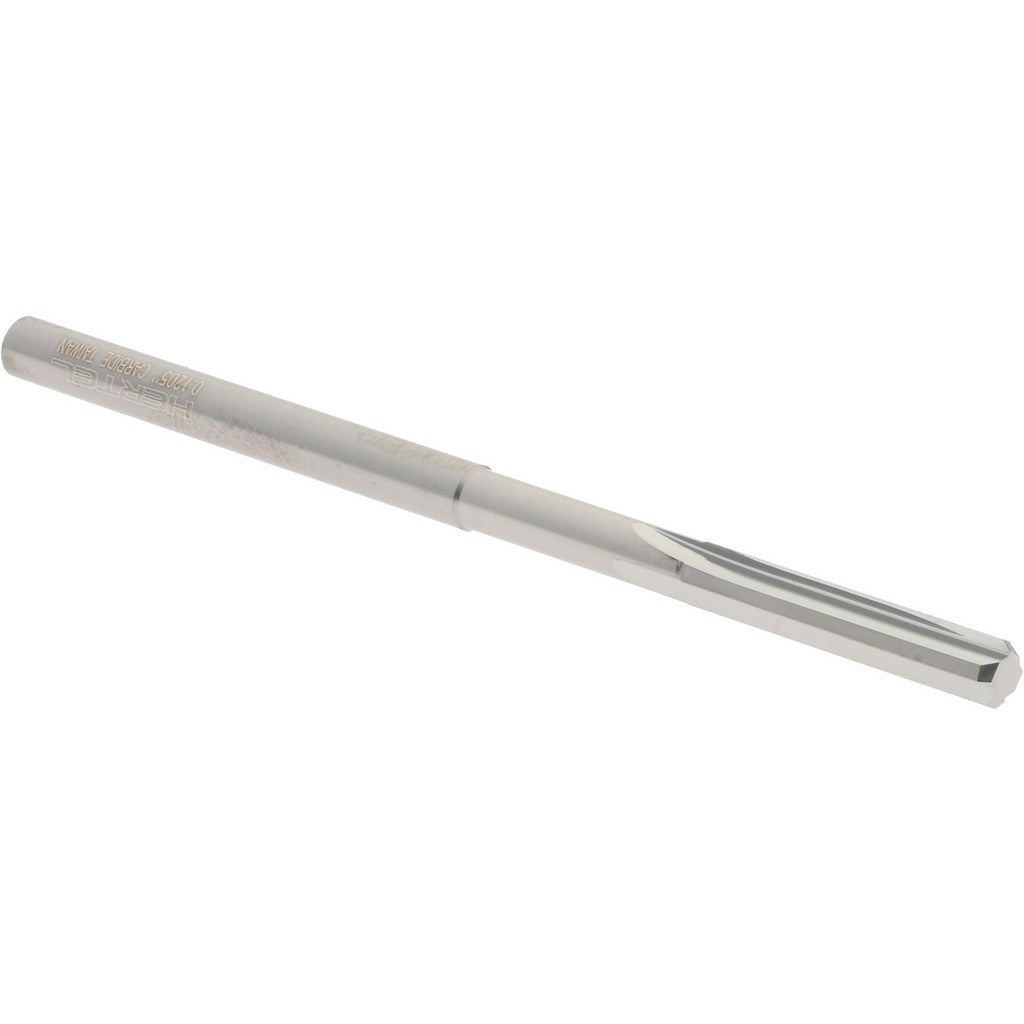

Hertel 45674710 Chucking Reamer 0.1205 in Solid Carbide

Product Description

The HERTEL 45674710 is a solid carbide chucking reamer designed to produce precise, finished bores in metal workpieces. With a cutting diameter of 0.1205 inches and an overall length of 2.25 inches, this reamer is built for close-tolerance hole finishing in machining applications. The solid carbide construction delivers superior hardness and wear resistance compared to high-speed steel, making it well suited for production environments where tool life and dimensional consistency are critical. A bright polished finish reduces friction and chip buildup during the cut. Licensed machinists and CNC operators are the primary users of this tool.

This chucking reamer is used in machine tool setups including drill presses, lathes, and CNC machining centers where a straight shank chuck or collet is used to hold the tool. The 5/8-inch flute length suits shallow to moderate-depth reaming passes in materials where a small-diameter precision bore is required. It is appropriate for general metalworking, toolroom, and production machining applications in both job shop and manufacturing environments.

Key Features

• Solid carbide construction for extended tool life in demanding materials
• 0.1205-inch cutting diameter for precise small-bore finishing
• 4 straight flutes with right-hand cutting direction
• Bright polished coating reduces friction and improves chip evacuation
• Straight shank compatible with standard chucks and collet systems
• 5/8-inch flute length suitable for shallow reaming passes

Compatibility

Designed as an OEM-style chucking reamer for use in any machine tool setup accepting a straight shank tool in the corresponding diameter range.

Installation Notes

This reamer is installed by qualified machinists or CNC operators into a straight-shank chuck or precision collet. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing the tool. Pre-drill or bore the hole to the appropriate undersize before reaming to avoid overloading the flutes. Use appropriate cutting fluid for the workpiece material to maximize tool life and surface finish quality.
