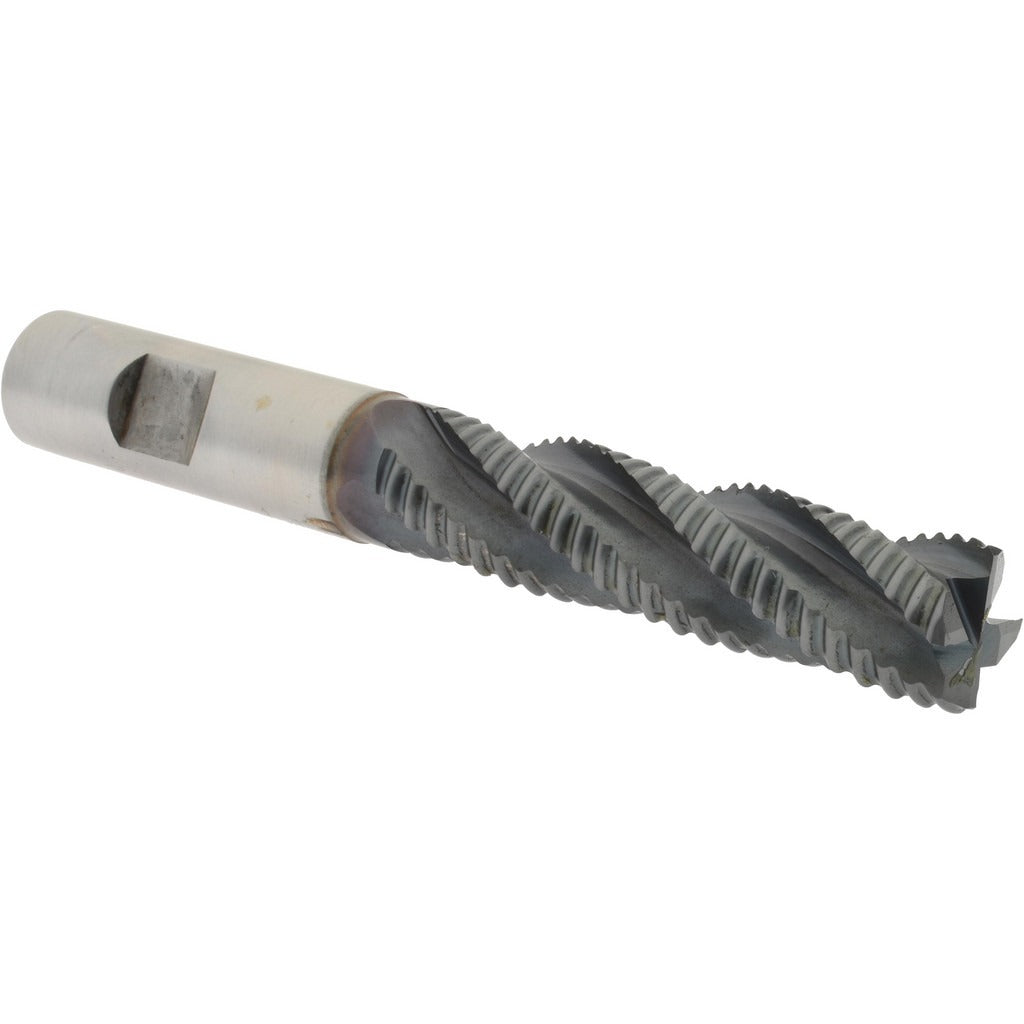

Hertel 41120650 Roughing End Mill 5/8 in 4 Flute Cobalt

Product Description

The HERTEL 41120650 is a single-end cobalt roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel and coated with TiCN for added wear resistance and heat tolerance, this tool handles tough ferrous and non-ferrous materials with a coarse pitch flute geometry that clears chips efficiently. The 5/8 inch diameter, four-flute configuration delivers the rigidity and cutting action needed for roughing passes in manual mills and CNC machining centers. Center-cutting capability allows plunge entry without a pre-drilled pilot hole.

This end mill suits job shops, maintenance shops, and production environments where roughing cuts on steel, stainless, and alloy materials are routine. The regular length profile fits standard tool holders without extended reach concerns. With a 2.5 inch length of cut and 4.625 inch overall length, it works well in standard R8, CAT, BT, and similar tooling setups where moderate reach and full-diameter engagement are required. Right-hand cutting and right-hand flute direction are standard for conventional and climb milling on most vertical and horizontal mills.

Key Features

• M42 cobalt HSS construction for elevated heat and wear resistance over standard M2 HSS
• TiCN coating extends tool life in abrasive and harder workpiece materials
• Coarse pitch roughing geometry reduces cutting forces and improves chip evacuation
• Center-cutting design allows direct plunge entry into workpiece material
• 5/8 inch shank diameter matches 5/8 inch collets and end mill holders directly
• Right-hand cut, right-hand helix for compatibility with standard spindle rotation

Compatibility

Designed as a direct-fit replacement roughing end mill for any tooling system accepting a 5/8 inch straight shank, including R8 collets, ER collets, side-lock holders, and Weldon-style end mill holders.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the machine in a locked-out, de-energized state per applicable machine tool safety procedures. Use a properly sized collet or end mill holder torqued to the tool holder manufacturer's specification and ensure the shank is fully seated before operation. Inspect the cutting edges for chips or wear before each use. TiCN-coated tools should not be reground without removing the coating first, as partial coating on a reground edge accelerates uneven wear.
