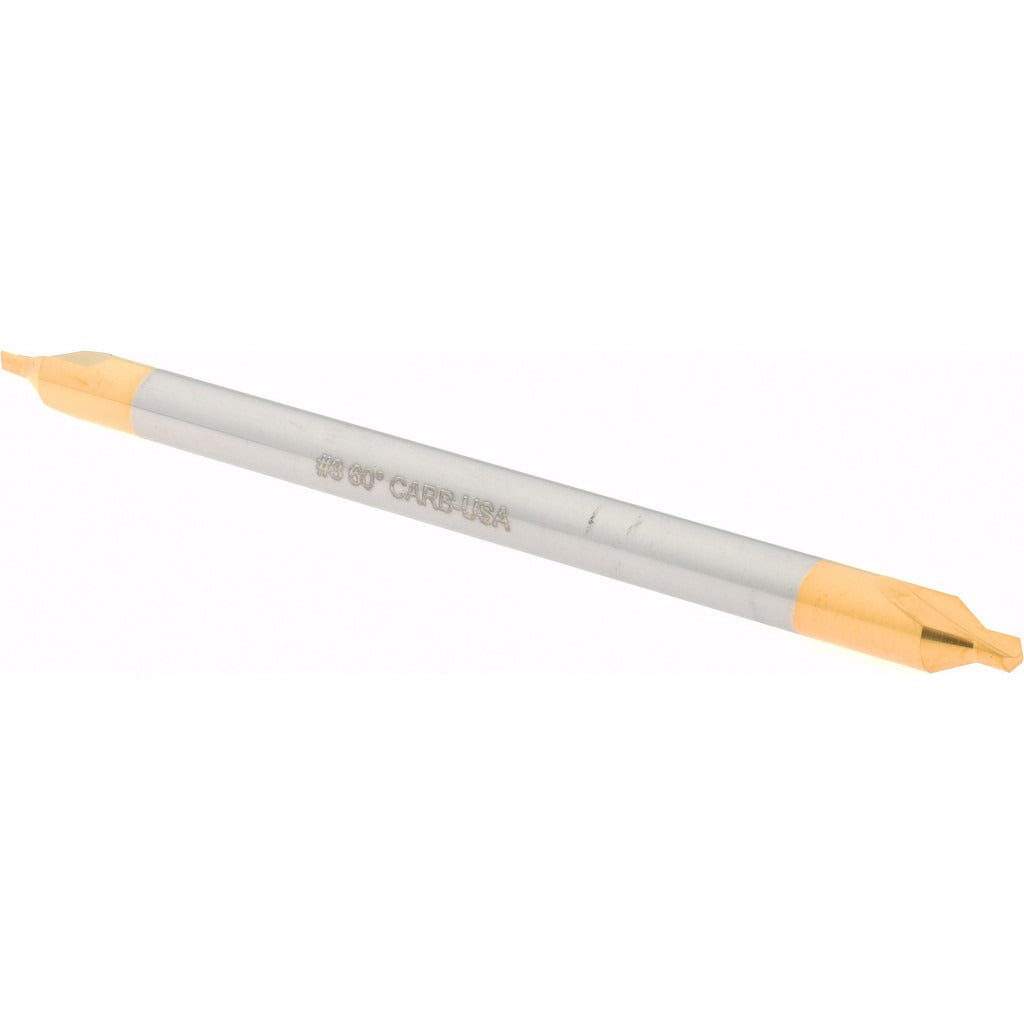

Hertel 300-005503 Combo Drill Countersink 1/4 in Carbide

Product Description

The HERTEL 300-005503 is a solid carbide combination drill and countersink designed to drill and chamfer in a single operation. Built to No. 3 trade size with a 1/4 inch body diameter, the tool features a 7/64 inch drill point diameter and a 118-degree drill point angle. The cutting geometry uses a plain cutting edge style with a 60-degree included angle for clean countersink profiles. A titanium nitride (TiN) coating reduces friction and extends tool life on ferrous and non-ferrous materials. Right-hand cutting direction. Overall length is 4 inches, qualifying this tool as a long-length style.

This combination drill countersink is suited for metalworking applications where a countersunk hole must be produced in a single setup. The double-end design extends usable tool life by providing two cutting ends. Typical applications include machine shops, fabrication environments, and toolroom work where precise countersink geometry is required for fastener seating. The tool is not tapered and does not use an insertable cutter head, making it a solid one-piece construction appropriate for manual feed or CNC drilling operations.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting applications
• TiN coating reduces friction and extends cutting life compared to uncoated carbide
• 118-degree drill point angle with 60-degree included countersink angle for standard fastener profiles
• Double-end design provides two usable cutting ends per tool
• Long-length tool at 4 inches overall length for increased reach
• Right-hand, plain cutting edge style for compatibility with standard drill press and CNC spindle rotation

Compatibility

Designed as a No. 3 trade size combo drill countersink for use in standard 1/4 inch collets or chucks in drill press, milling machine, or CNC machining center setups requiring a combined drill and countersink operation.

Installation Notes

This tool is installed and removed by a licensed machinist or qualified toolroom technician. Secure the tool firmly in an appropriate collet or drill chuck sized for a 1/4 inch shank before operation. Power down and de-energize the machine spindle completely before changing tooling. Do not exceed the machine spindle speed rating recommended for the workpiece material and tool diameter.
