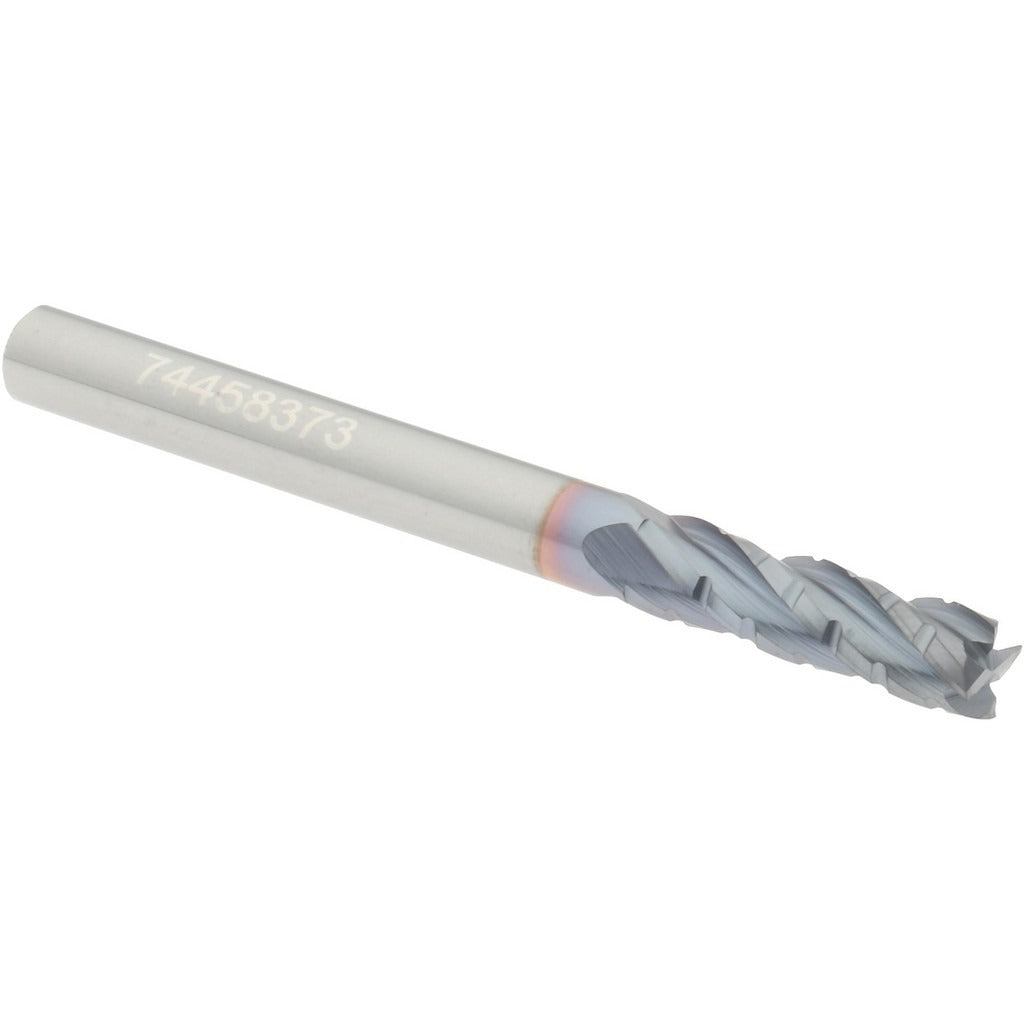

Hertel 2500491 Roughing End Mill 3/16 in 4 Flute Solid Carbide

Product Description

The HERTEL 2500491 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from micrograin solid carbide and coated with TiCN (Titanium Carbonitride), this tool delivers hardness and heat resistance suitable for ferrous and non-ferrous metals. The 3/16 inch diameter, 4-flute chipbreaker geometry breaks chips into smaller segments, reducing cutting forces and improving evacuation in deep cuts. With a right-hand cutting direction and right-hand flute spiral, it is center-cutting capable, allowing plunge entry. This tool is installed and operated by machinists and CNC programmers in production and job shop environments.

This end mill is suited for slot milling, profiling, and roughing passes on materials including steel, stainless steel, and cast iron where chip control is critical. The regular length configuration makes it practical for standard-depth pockets and peripheral cuts on vertical machining centers, CNC mills, and manual knee mills. The 3/16 inch shank diameter fits standard ER and collet toolholding systems commonly used at this size range.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• TiCN coating improves surface hardness and reduces built-up edge
• Chipbreaker geometry reduces cutting forces and aids chip evacuation
• Center-cutting capable — supports ramp and plunge entry
• 4 flutes with right-hand cut and right-hand flute direction
• Shank diameter tolerance of +0.0001 to -0.0004 inches for consistent toolholder fit

Compatibility

Designed as an OEM-style roughing end mill for use in standard 3/16 inch collet or ER toolholding systems on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Power down and lock out the spindle before changing tooling. Seat the shank fully in the collet or toolholder and torque the retention nut to the toolholder specification. Verify runout with a dial indicator before beginning a cut, particularly given the tight mill diameter tolerance of +0.000 to -0.005 inches.
