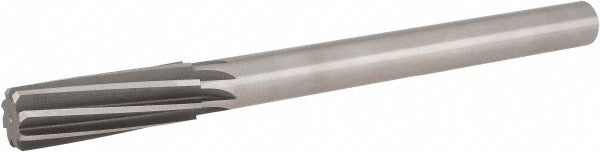

Hertel 2350601 Chucking Reamer 15/16 in 8 Flute Hss

Product Description

The HERTEL 2350601 is a straight-shank chucking reamer designed for precision hole finishing in metalworking applications. Built from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers accurate bore sizing in a wide range of ferrous and non-ferrous materials. It features 8 spiral flutes with right-hand cutting direction, providing smooth chip evacuation and consistent surface finish. The reamer measures 0.9375 inches (15/16 inches) in diameter with an overall length of 10 inches and a flute length of 2-5/8 inches. It is sized for work in the 0.7000 to 0.9999 decimal inch diameter range and is installed using a standard lathe chuck, drill press, or CNC setup.

This reamer is suited for machine shop, toolroom, and production environments where precise final bore diameter is required after drilling. It performs well in manual and CNC lathe, drill press, and milling machine applications. The straight-cylindrical shank allows straightforward mounting in standard chucks without the need for specialized toolholding. Typical users include machinists, toolmakers, and maintenance technicians working with close-tolerance bore fits in steel, aluminum, cast iron, and similar materials.

Key Features

• 15/16 inch (0.9375 inch) reamer diameter for accurate bore sizing
• 8 spiral flutes with right-hand cutting direction for smooth material removal and chip flow
• HSS construction provides durability across a broad range of workpiece materials
• Bright, uncoated finish — no additional coating to affect dimensional tolerance
• Straight-cylindrical shank mounts directly in standard drill chucks or collets
• 10 inch overall length with 2-5/8 inch flute length accommodates moderate depth bores

Compatibility

Designed as an OEM-style machine reamer for use in standard chucks and collet holders accepting a straight-cylindrical shank at the 15/16 inch diameter range.

Installation Notes

Chucking reamers are installed and operated by qualified machinists or toolroom technicians. Ensure the workpiece is securely fixtured and the machine spindle is powered down before mounting or removing the tool. Use appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish. Verify chuck runout is within acceptable limits before reaming to maintain bore accuracy.
