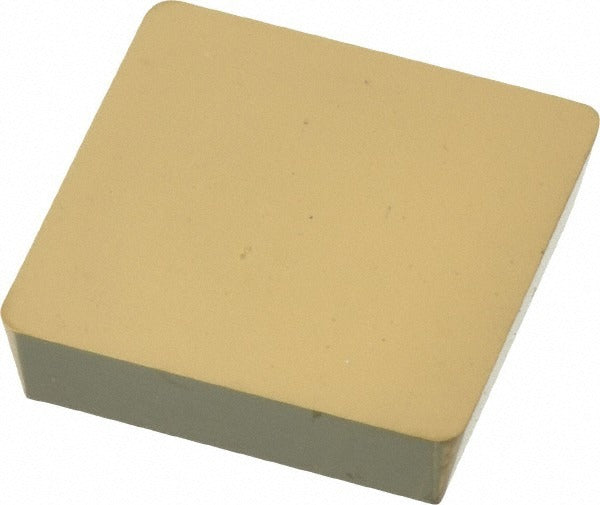

Hertel 1000398 Turning Insert SPG633 HC335 Carbide

Product Description

The HERTEL 1000398 is a solid carbide turning insert in the SPG633 style, designed for precision metal-cutting operations on CNC and manual lathes. It carries a multilayer CVD coating of TiC, TiCN, and TiN under the HC335 manufacturer grade, providing wear resistance and thermal stability across a range of workpiece materials. The insert features a 3/4 inch inscribed circle, a 3/64 inch corner radius, a 90-degree square shape, and an 11-degree relief angle with a positive rake geometry. It is installed by machinists and toolroom technicians in production and job-shop turning applications.

This insert is suited for turning ferrous and stainless workpiece materials, corresponding to ISO material groups P and M. The neutral hand orientation makes it compatible with both left- and right-hand toolholders. The KENDEX series designation and SPG633 style code indicate use in clamp-style toolholders with a P tolerance and G clearance code. Typical applications include roughing and semi-finishing passes where controlled chip flow and edge integrity are required. Maximum depth of cut is 0.0492 inch (1.25 mm).

Key Features

• Solid carbide substrate with CVD-applied TiC, TiCN, and TiN multilayer coating for extended tool life
• HC335 grade rated for ISO P and M workpiece materials including steel and stainless steel
• 3/4 inch inscribed circle with 90-degree square insert shape for versatile toolholder compatibility
• 3/64 inch (0.0470 inch) corner radius suitable for moderate finishing and semi-roughing operations
• Positive rake geometry with 11-degree relief angle reduces cutting forces on the workpiece
• Clamp-style holding method with no chip breaker (style code N) for straightforward insert seating

Compatibility

Designed for use in clamp-style SPG-seat toolholders conforming to the KENDEX series SPG633 insert style. Tolerance code G and clearance code P apply. Verify toolholder seat and clamping system specifications before installation.

Installation Notes
