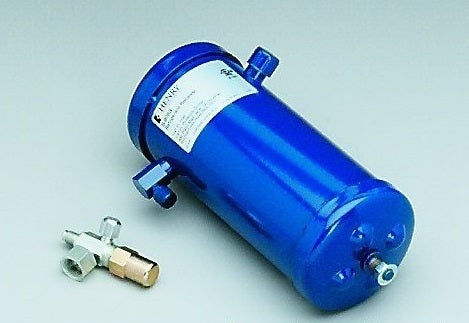

Henry Technologies S-8063 Vertical Receiver Liquid Refrigerant, 1/4 Flare, 4.2 Lbs Holding Capacity

Refrigerant receiver, vertical, 1/4 MFL inlet x MFL valve outlet, 4.2 lbs holding capacity

Receiver storage capacities are based on the liquid occupying no more than 90% of the internal volume when the temperature of the refrigerant is 90F per ASHRAE Standard 15-78.

Features:
Connection: M. flare inlet x M. flare valve outlet
Valve on outlet side
Mounting: S8060-S8066 3/8-16 tpi mounting stud on bottom S8067, S8068 have mounting feet
Pumpdown: R22, 90% volume 90F
Maximum working pressure: 450 psi
Fusible plug

Specifications:

Height (In.): 10
Weight (Lbs.): 4
Connection Size (In.): 1/4
Connection Type: MFL
Diameter (In.): 4
Holding Capacity (Lbs.): 4.2
