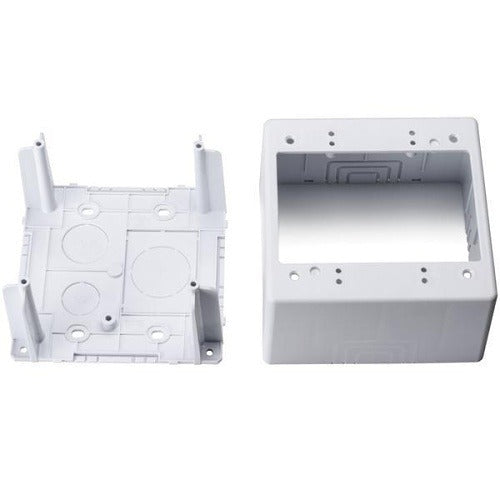

Hellermanntyton TSRPW-JBD2 Dual Gang Junction Box

Product Description

The HELLERMANNTYTON TSRPW-JBD2 is a dual gang junction box designed for use in raceway and conduit wiring systems. It provides a secure enclosure for splicing, terminating, or transitioning electrical conductors within a structured wiring pathway. The dual gang configuration accommodates two device openings, making it suitable for installations that require additional outlet, switch, or low-voltage device positions along a raceway run. Electricians and low-voltage installers use this box as part of a complete raceway assembly to maintain a clean, code-compliant installation.

This junction box is suited for commercial and residential electrical and low-voltage applications where surface-mounted raceway systems are used. It fits into raceway infrastructure typically installed along walls and ceilings, serving as a junction or device mounting point. The dual gang format is commonly used in offices, classrooms, and commercial spaces where multiple devices need to share a single raceway outlet location.

Key Features

• Dual gang configuration supports two device or cover plate openings
• Designed for integration with surface-mounted raceway and conduit systems
• Sold individually as a single unit
• Intended for use in structured electrical and low-voltage wiring pathways

Compatibility

Designed as an OEM-style component for use with compatible HELLERMANNTYTON raceway and conduit surface-mount systems.

Installation Notes

Installation is typically performed by a licensed electrician or low-voltage technician. De-energize all circuits in the work area before mounting or wiring the junction box, in accordance with NFPA 70 (NEC) lockout/tagout requirements. Ensure the box is securely fastened to the raceway base and that all conductor terminations are properly made before attaching covers. Verify local code requirements for junction box accessibility and fill capacity before completing the installation.
