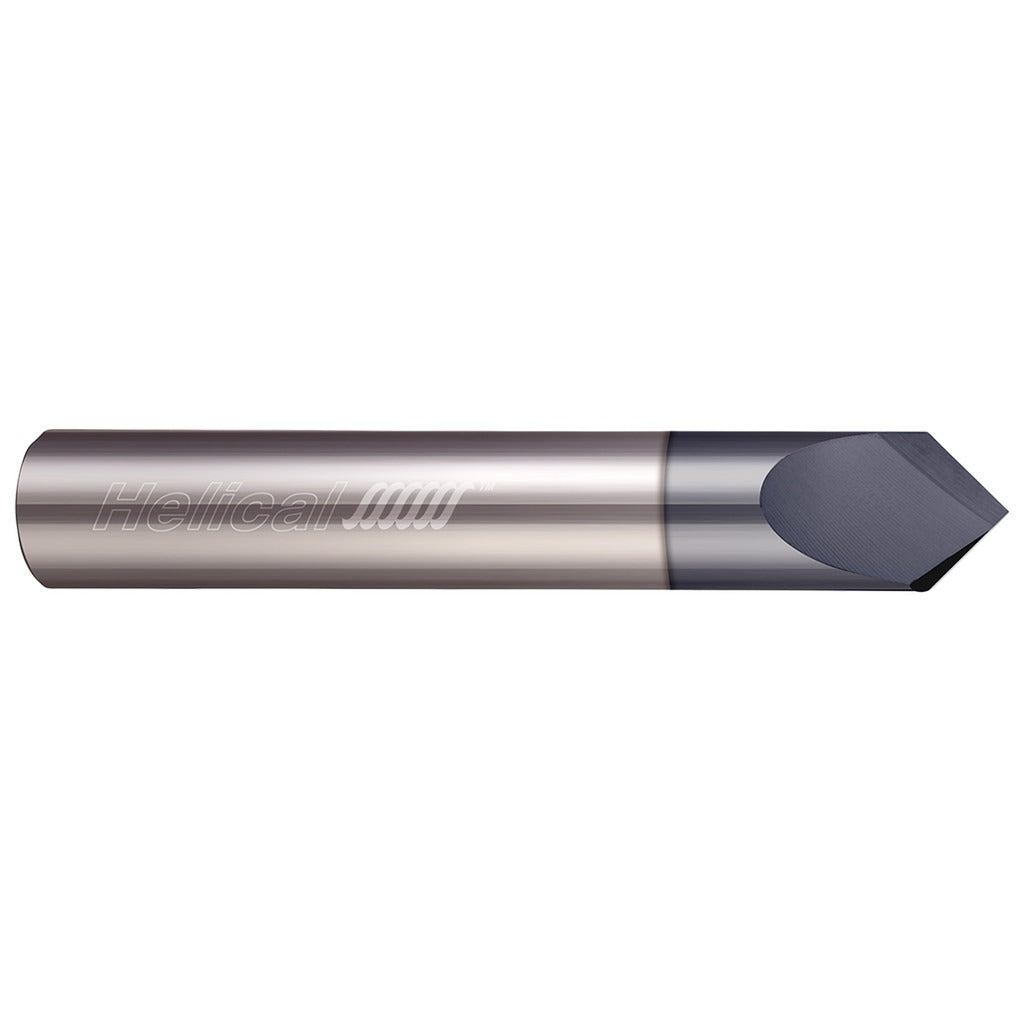

Helical Solutions 84777 Chamfer Mill 5/16 in 2 Flute Carbide

Product Description

The HELICAL SOLUTIONS 84777 is a 2-flute solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on ferrous and non-ferrous workpieces. With a 5/16-inch cutting diameter and a 90-degree included angle, it produces consistent, precise chamfers in a single pass. The Aplus coating improves wear resistance and helps reduce built-up edge during high-speed cutting. At 2.5 inches overall length with a 5/16-inch shank, this tool fits standard end mill holders and collet chucks used in CNC machining centers and manual milling machines. It is installed and used by machinists and tool-and-die professionals in production and job-shop environments.

This chamfer mill is suited for single-end chamfering and edge preparation on parts machined from steel, aluminum, and similar materials. The straight-flute, right-hand cutting geometry makes it appropriate for general chamfering where chip evacuation demands are moderate. With a 5/32-inch length of cut, it is optimized for light to medium chamfer depths rather than deep beveling applications. Typical use cases include part deburring after milling or drilling, thread lead-in preparation, and cosmetic edge finishing on machined components.

Key Features

• 90-degree included angle for standard chamfer and deburring applications
• Solid carbide construction for rigidity and wear resistance in demanding materials
• Aplus coating reduces friction and extends tool life at elevated cutting speeds
• Right-hand cutting, straight-flute design for predictable chip flow
• 5/16-inch shank diameter compatible with common collet and end mill holder systems
• Single-end geometry with 5/32-inch length of cut for controlled chamfer depth

Compatibility

Designed as a direct-fit replacement for 5/16-inch shank chamfer mills used in standard CNC and manual milling setups requiring a 90-degree chamfer geometry.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or end mill holder and torque the retention mechanism to the machine or toolholder manufacturer's specification. Verify runout with a dial indicator before beginning a production cut.
