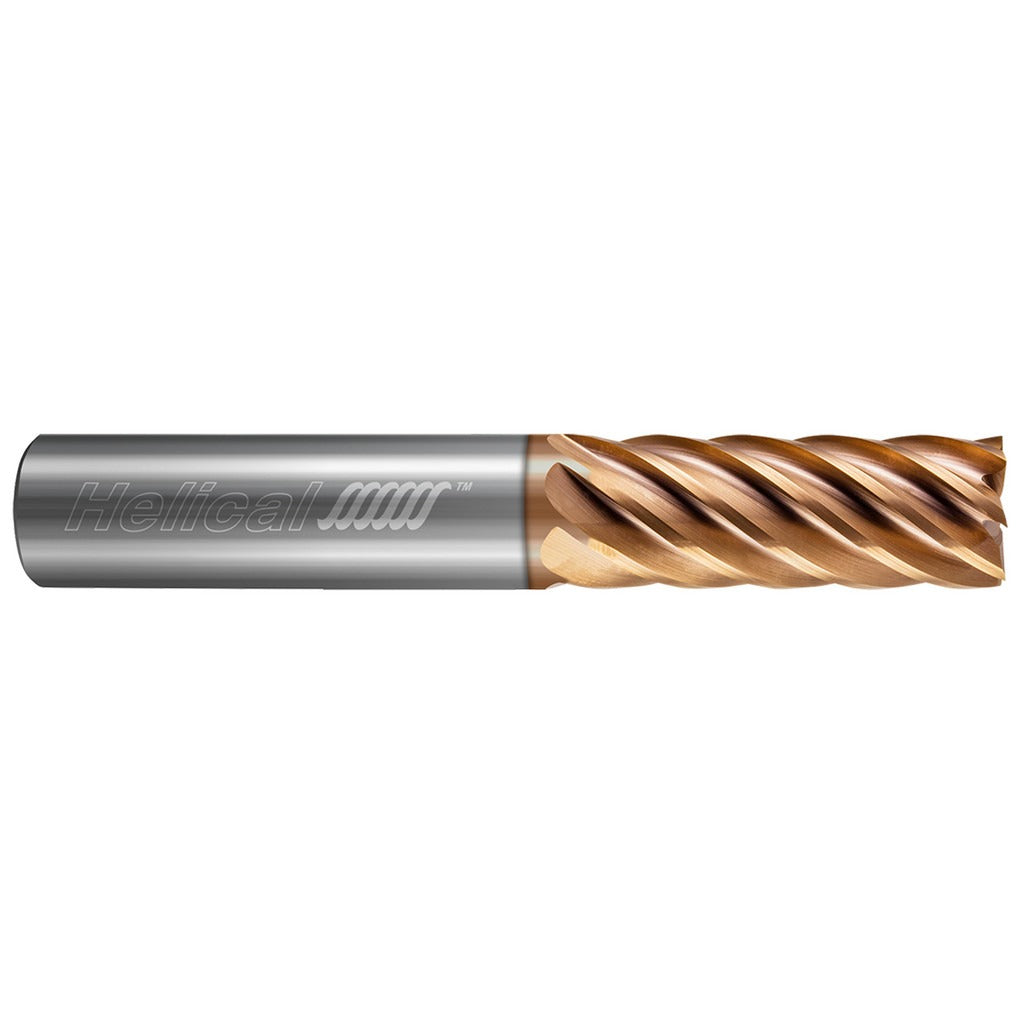

Helical Solutions 81940 Square End Mill 1/2 in 7 Flute Carbide

Product Description

The HELICAL SOLUTIONS 81940 is a 7-flute solid carbide square end mill designed for high-performance milling in demanding metalworking and machining applications. It features a 1/2 inch mill diameter, a 2 inch length of cut, and a 4 inch overall length with a matching 1/2 inch straight cylindrical shank. The Tplus coating enhances wear resistance and thermal stability during aggressive cutting operations. Variable index flute spacing reduces harmonic vibration at the spindle, improving surface finish and tool life. This end mill is a single-end tool with right-hand cutting and right-hand helical flutes.

This end mill is suited for milling operations in ferrous and non-ferrous materials on CNC machining centers and manual knee mills. The 7-flute geometry and Tplus coating make it particularly effective for finishing and semi-finishing passes where high material removal rates and surface quality are priorities. It is installed and operated by machinists, toolroom technicians, and CNC programmers in job shops, production facilities, and aerospace or mold-and-die environments. Note that this tool is not center-cutting and is not intended for direct plunge entry.

Key Features

• 7-flute design increases feed rates and improves surface finish compared to lower flute-count tools
• Variable index flute spacing reduces chatter and vibration during cutting
• Tplus coating provides enhanced wear resistance and extended tool life in ferrous materials
• Solid carbide construction delivers rigidity and heat resistance under high cutting loads
• Right-hand cut, right-hand helical flute geometry for standard CNC spindle compatibility
• Straight cylindrical shank fits standard ER collets and end mill holders

Compatibility

Designed for use in CNC machining centers and manual mills accepting a 1/2 inch straight shank end mill via ER collet chuck, side-lock holder, or shrink-fit toolholder. Not center-cutting — plunge milling requires a pre-drilled pilot hole or ramping entry strategy.

Installation Notes

This tool is installed by qualified machinists or CNC operators. Ensure the spindle is fully stopped and the machine is in an energy-isolated state before changing tooling. Verify collet or holder runout is within acceptable limits before use, as excessive runout accelerates wear on a 7-flute tool. Do not use this end mill for direct plunge cuts, as it is not center-cutting.
