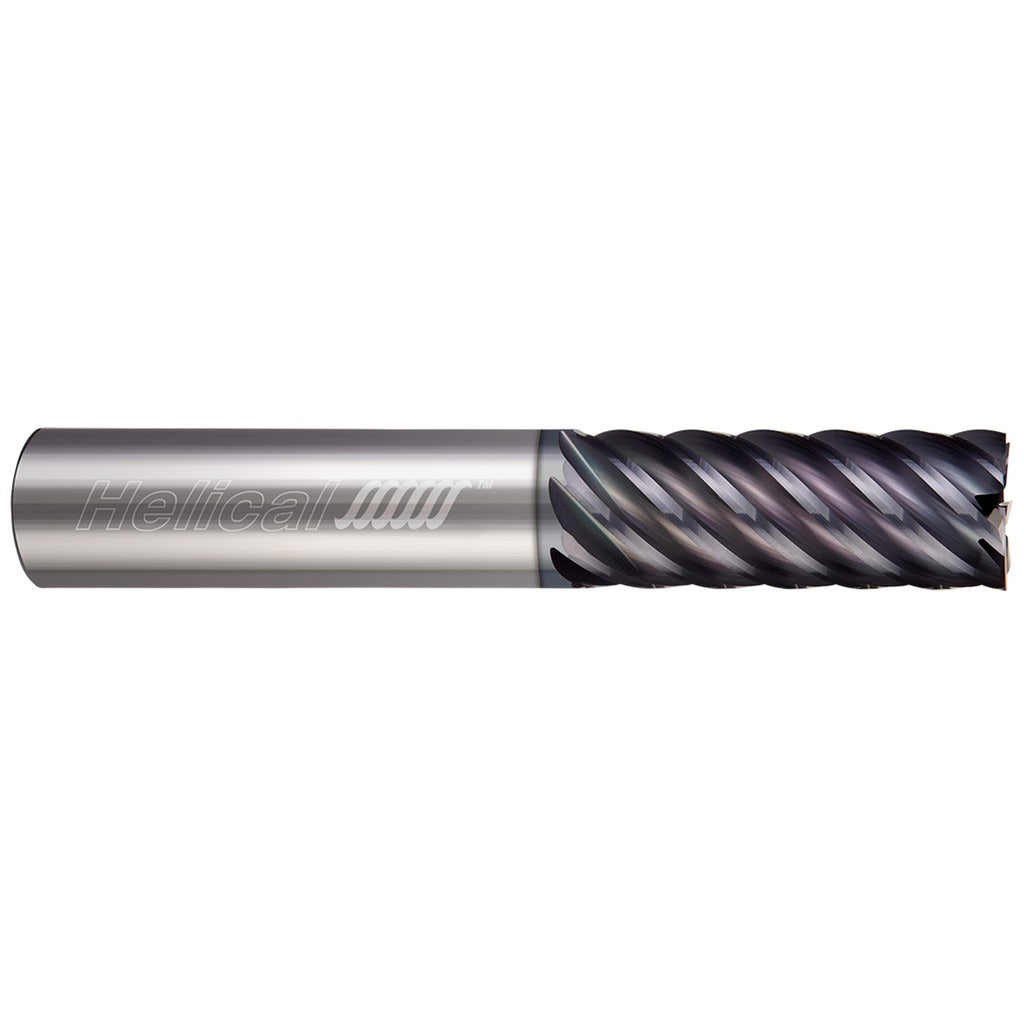

Helical Solutions 81829 Square End Mill 1/2 in 7 Flute Carbide

Product Description

The HELICAL SOLUTIONS 81829 is a 7-flute solid carbide square end mill engineered for steel finishing operations. With a 1/2 inch cutting diameter and 1 inch length of cut, it removes material aggressively while delivering the fine surface finish that finish-pass work demands. The APLUS coating adds hardness and lubricity, reducing heat buildup and extending tool life in ferrous materials. At 2.5 inches overall length with a 1/2 inch straight-cylindrical shank, it mounts directly in standard collet chucks and milling tool holders. This tool is intended for use by machinists and CNC operators working in job shop, production, or maintenance machining environments.

This end mill is designed for finishing passes on steel and other ferrous alloys. The 7-flute geometry increases the number of cutting edges in contact with the workpiece, allowing higher feed rates at reduced chip load per flute compared to standard 4-flute designs. Right-hand cut and right-hand helical flutes are standard for conventional vertical and horizontal CNC milling setups. The series designation identifies it as part of the End Mills for Steels Finisher line, which targets tight-tolerance, low-stepover finishing cuts rather than high-volume roughing.

Key Features

• 7-flute solid carbide construction for steel finishing applications
• APLUS coating for improved wear resistance and reduced friction on ferrous materials
• 1/2 inch cutting diameter with 1 inch length of cut
• Right-hand cut, right-hand helical flute orientation for standard CNC mill setups
• Straight-cylindrical shank compatible with standard collet and milling chuck toolholders
• Non-centercutting geometry — designed for peripheral finishing, not plunge entry

Compatibility

Designed as a finishing end mill for steel and ferrous alloy milling operations. Part of the HELICAL SOLUTIONS End Mills for Steels 7-Flute Square Finisher series. No specific machine model compatibility was provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully within the toolholder to the recommended gauge-line depth before tightening; insufficient engagement reduces rigidity and can cause tool pull-out under cutting loads. Verify spindle RPM and feed rate parameters match the tool diameter and workpiece material before starting a cut. This tool is non-centercutting — do not use for direct plunge operations without a pre-drilled entry hole or ramping approach.
