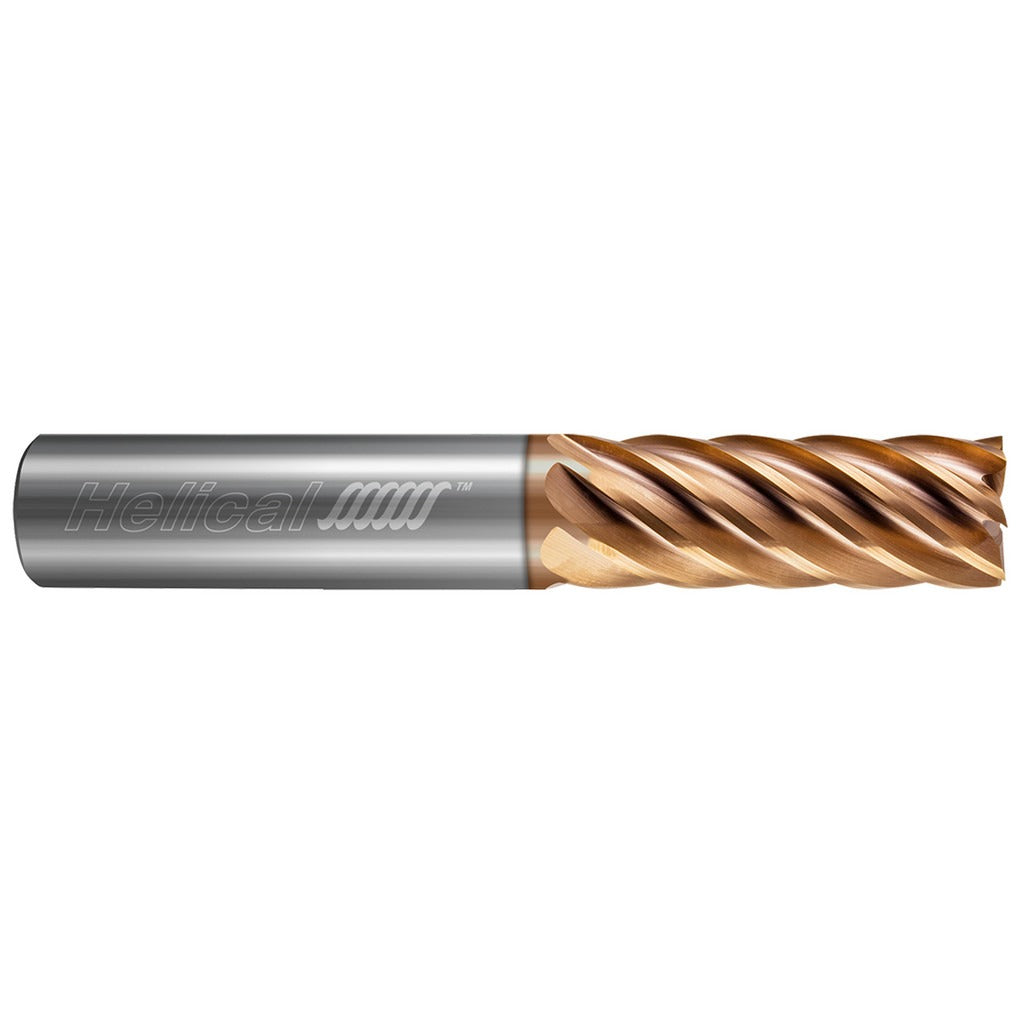

Helical Solutions 59939 1/4 in 7 Flute Square End Mill

Product Description

The HELICAL SOLUTIONS 59939 is a 7-flute solid carbide square end mill designed for high-productivity milling in stainless steel and high-temperature alloys. With a 0.25-inch mill diameter and a 0.375-inch length of cut, this tool delivers the rigidity and chip evacuation capacity required when cutting demanding materials. The variable index flute spacing reduces harmonic vibration, improving surface finish and extending tool life. Applied with a Tplus coating, it resists heat and wear under the aggressive feed rates these difficult materials demand. Licensed machinists and CNC operators working in aerospace, medical, and industrial fabrication will find this tool sized for tight-tolerance finishing and semi-finishing passes.

This end mill is built for stainless steel grades and high-temperature alloys such as Inconel, titanium, and similar work materials where tool wear is a primary concern. The 0.25-inch shank diameter matches standard collet and end mill holder sizes common on CNC machining centers and manual mills. With a 2-inch overall length, it suits shallow-to-medium depth applications where rigidity matters more than reach. The right-hand cutting and right-hand helical flute direction make it compatible with standard spindle rotation on conventional CNC equipment.

Key Features

• 7-flute geometry increases radial engagement and material removal rates in hard alloys
• Variable index pitch reduces chatter and harmonic vibration during cut
• Tplus coating provides thermal resistance and extended wear life
• Solid carbide construction delivers rigidity and dimensional stability
• Right-hand cut, right-hand helix — compatible with standard CNC spindle rotation
• Non-centercutting design — intended for peripheral and slotting passes, not plunge entry

Compatibility

Designed for use in CNC machining centers and mills with a standard 1/4-inch collet or end mill holder. Optimized for the HELICAL SOLUTIONS End Mills for Stainless and High Temp 7 Flute Square Variable Pitch series application category.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in an e-stop or powered-down state before changing tooling. Use a properly torqued collet nut and inspect the shank seating depth against the holder specification before running. Do not use this tool for plunge operations — it is non-centercutting and requires a ramping or helical entry strategy.
