Helical Solutions 59927 Corner Radius End Mill 1/2 in 6 Flute

Product Description

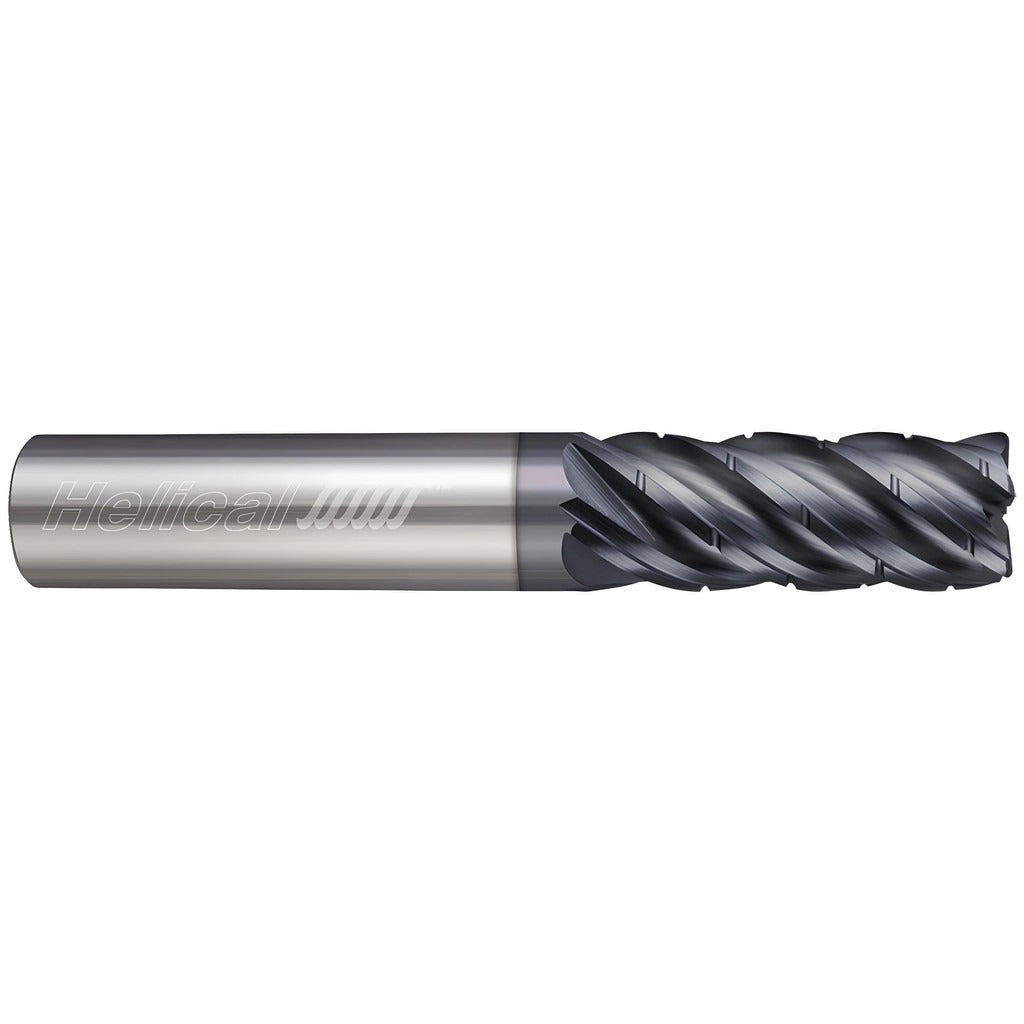

The HELICAL SOLUTIONS 59927 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built on the HEV-6 series platform, it features a 1/2 inch diameter, six flutes, and a 0.0300 inch corner radius that reduces stress concentrations at the cutting edge and extends tool life. The Tplus PVD coating provides thermal resistance and wear protection suited to aggressive cutting conditions. Variable pitch geometry reduces harmonic vibration during cutting. This tool is single-end, centercutting, and right-hand cutting with right-hand flute direction. It is installed by CNC machinists and tooling technicians in production and job-shop environments.

The 59927 is engineered primarily for stainless steel, high-temperature alloys, and hardened steel, making it well suited for aerospace, medical, and die-mold work. Its stub length-of-cut profile and straight-cylindrical shank are compatible with high-precision toolholders and collet chucks. The centercutting capability allows plunge entry, adding flexibility to 3D profiling and pocketing operations. Secondary workpiece materials include non-ferrous metals and other hard materials, broadening its application range across roughing and finishing passes in a single tool.

Key Features

• Six-flute solid carbide construction for rigidity and high feed rates in tough materials
• Tplus PVD coating rated for stainless steel, high-temperature alloys, and hardened steel
• 0.0300 inch corner radius with tolerance of -0.0020 to 0.0020 inches reduces edge chipping and improves surface finish
• Variable pitch fluting minimizes chatter and harmonic vibration without variable helix
• Centercutting design supports direct plunge entry and 3D contouring
• Stub length-of-cut for maximum rigidity in short-reach applications

Compatibility

Designed for use with high-precision toolholders and collet chucks accepting a 1/2 inch straight-cylindrical shank. Optimized for machining stainless steel, high-temperature alloys, and hardened steel; suitable as a secondary tool in non-ferrous and hard material applications.

Installation Notes

Installation is performed by CNC machinists or tooling technicians. Seat the shank fully into a high-precision toolholder or collet chuck and verify runout does not exceed the 0.0005 inch maximum TIR specification before operation. Confirm spindle direction is set to right-hand rotation before engaging the cut. Follow machine tool manufacturer guidelines and applicable shop safety protocols when handling and setting carbide cutting tools.
