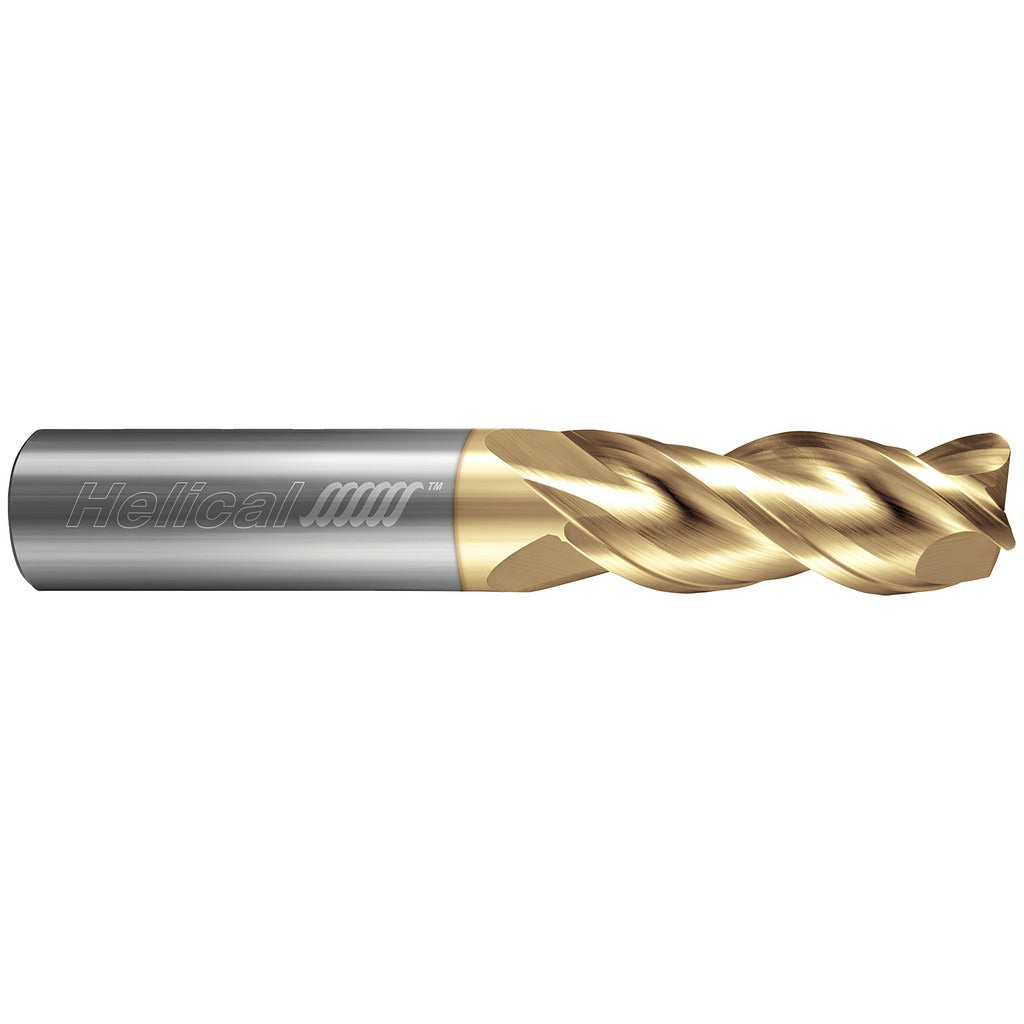

Helical Solutions 46356 Corner Radius End Mill 1/2 in 3 Flute

Product Description

The HELICAL SOLUTIONS 46356 is a solid carbide corner radius end mill designed for high-performance milling in aluminum, non-ferrous metals, and secondary materials including steel, stainless steel, cast iron, high-temperature alloys, and hard materials. It carries a 0.5000-inch mill diameter, a 0.1250-inch corner radius, and three flutes with a variable pitch configuration. The Zplus PVD coating extends tool life in demanding cuts. At 4 inches overall length with a 2.25-inch reach, this is an extended-reach tool suited for deep-pocket and complex-contour work where standard-length end mills cannot reach. Series H40ALV-RN-3.

This end mill is intended for use in CNC machining centers and high-precision toolholders. Its primary application is aluminum and non-ferrous metal stock removal and finishing, with extended reach capability making it well suited for aerospace, mold, and die work where floor-to-wall blends and deep cavities are common. The single-end, centercutting design allows plunge entry. Right-hand flute direction and right-hand cutting direction are standard. It handles both roughing and finishing operations in a single tool, reducing changeover time on the machine.

Key Features

• 0.1250-inch corner radius with tolerance of -0.0020 to 0.0020 inches for consistent blending and reduced stress concentration
• Zplus PVD coating optimized for aluminum and non-ferrous materials, reducing built-up edge
• Variable pitch flutes with high helix style reduce chatter and improve surface finish
• Extended reach at 2.25-inch reach length and 4-inch overall length for deep-pocket access
• Centercutting, single-end design permits direct plunge entry
• Solid carbide construction with h6 shank and mill diameter tolerances for high-precision runout control, TIR maximum 0.0003 inches

Compatibility

Designed for use with high-precision toolholders. Primary workpiece materials are aluminum and non-ferrous metals. Secondary workpiece materials include steel, stainless steel, cast iron, high-temperature alloys, and hard materials. Part of the HELICAL SOLUTIONS H40ALV-RN-3 series.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician. Use high-precision toolholders as specified to maintain runout within the stated TIR maximum. Ensure the spindle and toolholder are clean and free of chips or debris before seating the shank. Follow the machine tool manufacturer and cutting tool manufacturer guidelines for speeds, feeds, and depth of cut for the specific workpiece material.
