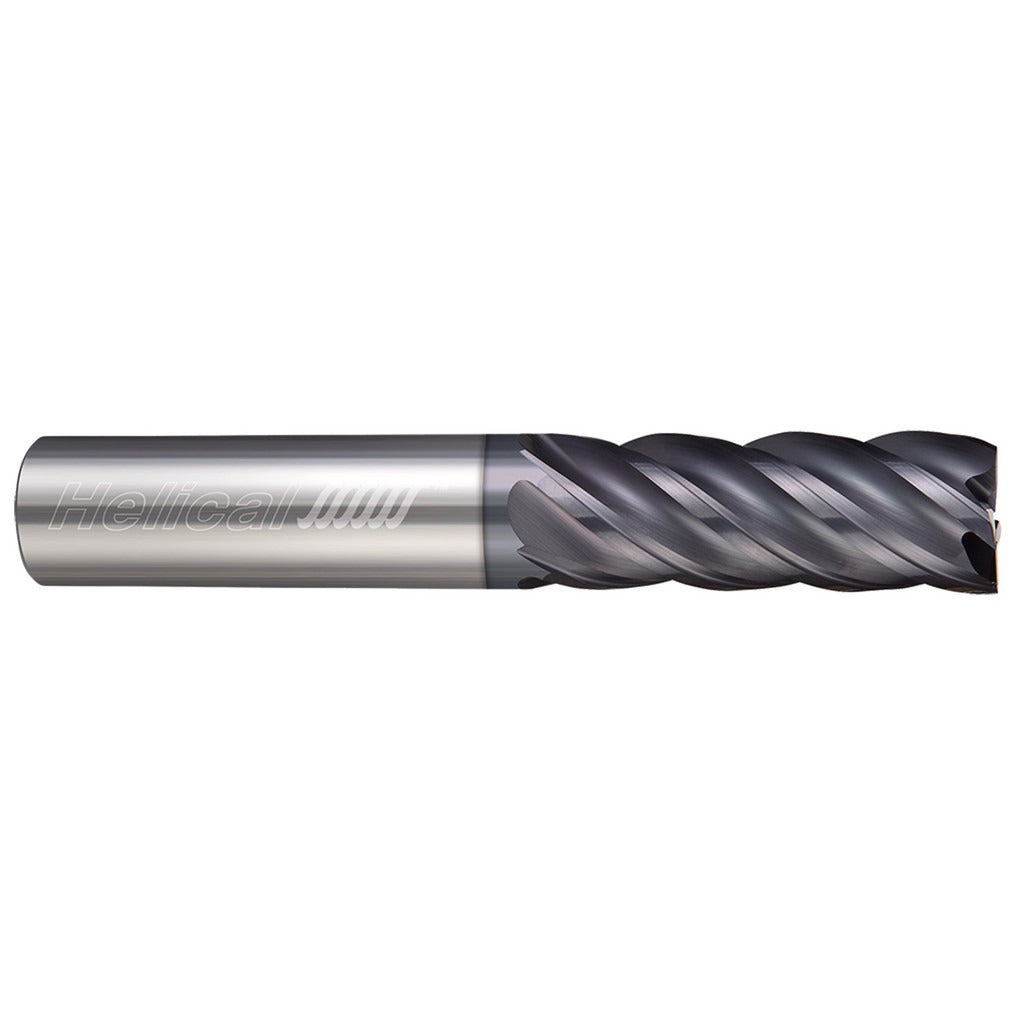

Helical Solutions 44122 Square End Mill 0.25in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 44122 is a 5-flute solid carbide square end mill engineered for milling steel and other ferrous materials. With a 0.25-inch cutting diameter, a 0.5-inch length of cut, and a 2.5-inch overall length, this tool is built for machinists and tool-and-die professionals who need reliable performance in demanding steel-milling operations. The variable index geometry distributes cutting forces unevenly across the flutes, reducing harmonic vibration and chatter during aggressive passes. The APLUS coating improves wear resistance and extends tool life in high-speed steel applications. It mounts on a 0.25-inch straight cylindrical shank and cuts right-hand with a right-hand helical flute pattern.

This end mill is designed for use in CNC machining centers and manual mills where steel finishing, slotting, and profiling operations are required. The 5-flute design supports higher feed rates compared to standard 4-flute tools, making it well-suited for high-efficiency milling strategies on hardened and alloy steels. The square end profile produces flat-bottom features with sharp corner definition. It is sold individually and is a single-end tool, meaning it is replaced rather than reversed when worn.

Key Features

• 5-flute variable index design reduces chatter and improves surface finish in steel milling
• Solid carbide construction provides rigidity and wear resistance beyond HSS alternatives
• APLUS coating enhances heat and wear resistance for extended tool life
• Center-cutting capable, allowing plunge entry without a pre-drilled pilot hole
• Right-hand cut with helical flute geometry for efficient chip evacuation
• Straight cylindrical shank fits standard 0.25-inch collets and end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use tool in the HELICAL SOLUTIONS End Mills for Steels 5 Flute Square Variable Pitch series, compatible with any CNC or manual milling setup accepting a 0.25-inch straight shank.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet or end mill holder. Use the correct collet size and torque the drawbar or nut according to the machine manufacturer specifications. Inspect the cutting edges and coating before each use and replace the tool if chipping or coating breakdown is observed.
