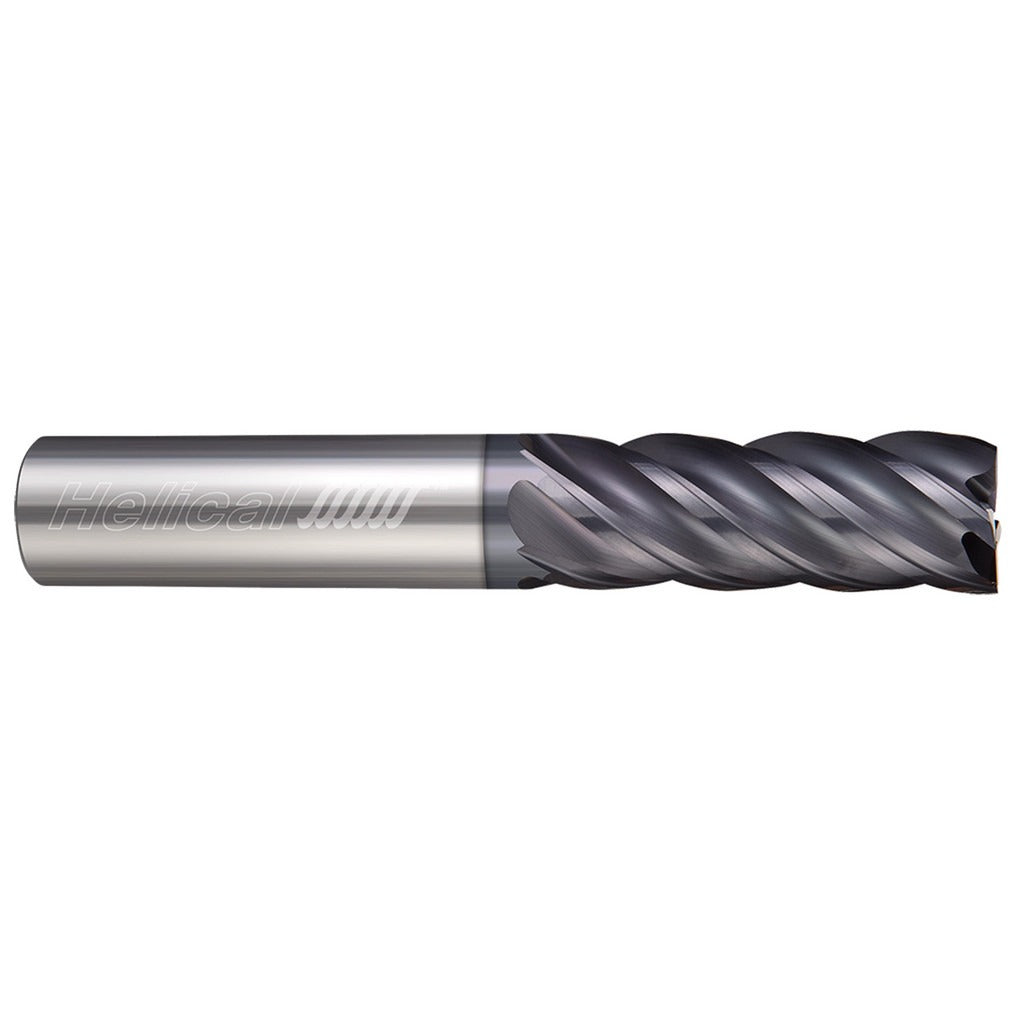

Helical Solutions 44032 Square End Mill 1/8 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 44032 is a 5-flute solid carbide square end mill designed for high-performance milling in demanding machining applications. With a 1/8 inch cutting diameter and a 1/2 inch length of cut, this tool is built for precision slotting, profiling, and peripheral milling. The APLUS coating provides enhanced lubricity and wear resistance, extending tool life in ferrous and non-ferrous materials. The variable index flute geometry reduces harmonic vibration during cutting, improving surface finish and allowing for more aggressive feed rates. Installed and operated by machinists and CNC programmers, this end mill suits both manual and CNC mill setups.

This end mill is suited for light-to-moderate material removal in applications requiring a small-diameter tool with high rigidity. The solid carbide construction maintains stiffness in deep-reach or tight-tolerance work. The 1/8 inch straight cylindrical shank seats directly into standard collets or end mill holders. Typical use cases include die and mold work, aerospace component finishing, and precision part production where a compact 1/8 inch tool profile is required. The right-hand cutting and right-hand helical flute configuration is the standard orientation for conventional CNC milling setups.

Key Features

• 5-flute design increases chip load capacity and improves surface finish compared to 4-flute tools
• APLUS coating enhances wear resistance and reduces cutting friction
• Variable index flute spacing minimizes chatter and harmonic vibration
• Center-cutting capable, allowing plunge entry into the workpiece
• Solid carbide construction provides maximum rigidity for small-diameter tooling
• Right-hand cut and right-hand helix for standard CNC mill compatibility

Compatibility

Designed as an OEM-style replacement and standard production end mill for use in CNC machining centers and manual mills accepting a 1/8 inch straight cylindrical shank via collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully into the collet or holder to the recommended engagement depth before tightening. Verify runout with a dial indicator after seating, as excessive runout will accelerate wear on a small-diameter carbide tool.
