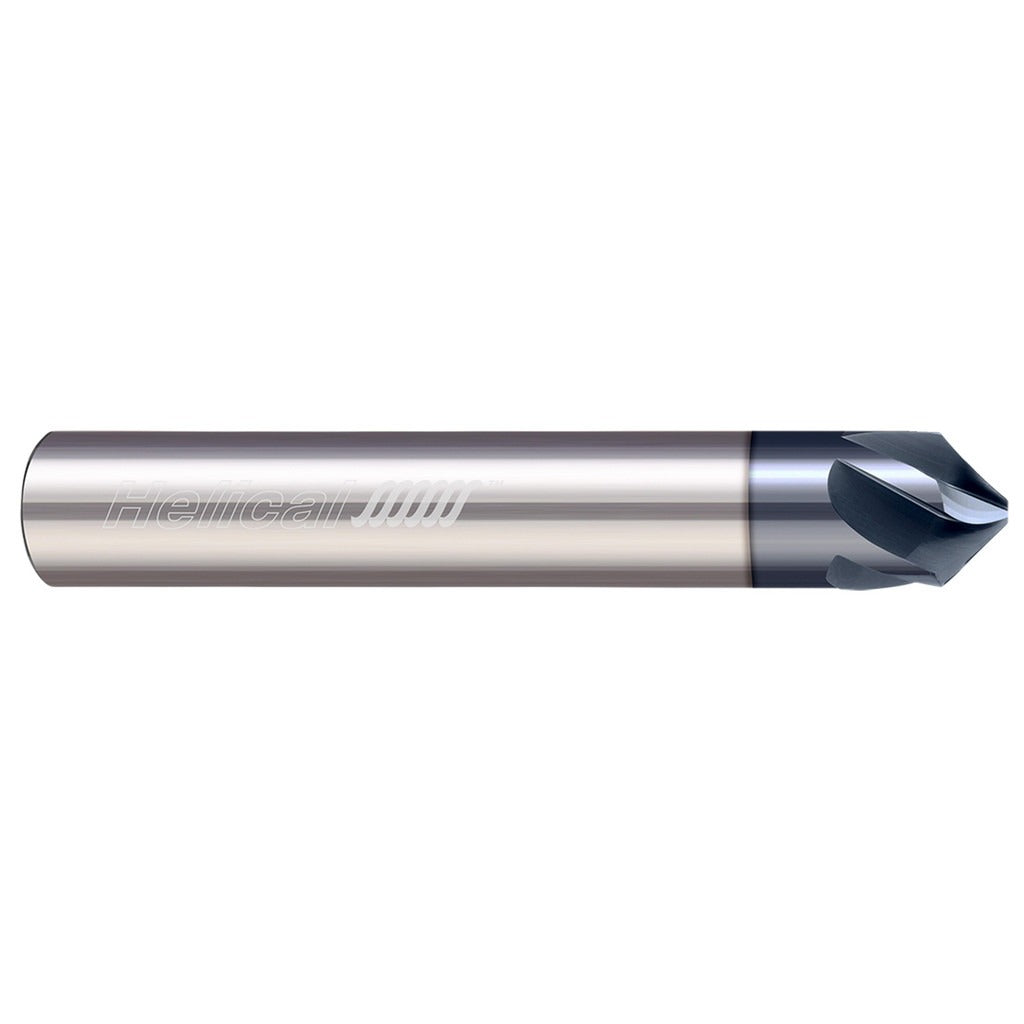

Helical Solutions 07031 Chamfer Mill 3/4 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 07031 is a solid carbide chamfer mill designed for precise chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous workpieces. Built with a 90-degree included angle and 5 flutes, it delivers clean, consistent chamfer geometry in a single pass. The cutter head diameter measures 0.75 inches with a matching 0.75-inch shank diameter, and overall length is 3 inches. The Aplus coating improves wear resistance and extends tool life in demanding production environments. This tool is sized and constructed for use in machining centers and manual mills where reliable chamfer quality is required across medium to high-volume work.

The 07031 is suited for chamfering and deburring operations on machined parts in job shop, production, and manufacturing settings. Its right-hand cutting direction and 0.325-inch length of cut make it appropriate for general-purpose chamfering on a range of materials. The solid carbide construction handles both ferrous and non-ferrous applications where tool rigidity and edge retention are priorities. Machinists and CNC operators working in aerospace, automotive, and general fabrication will find this a practical general chamfer tool for 3/4-inch shank toolholders.

Key Features

• 90-degree included angle for standard chamfer and deburring work
• 5-flute geometry for smooth finish and chip evacuation
• Solid carbide construction for rigidity and edge retention
• Aplus coating for improved wear resistance and extended tool life
• Right-hand cutting direction, single-end design
• 0.325-inch length of cut for controlled chamfer depth

Compatibility

Designed as a direct-fit chamfer mill for standard 3/4-inch shank toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank firmly in a compatible 3/4-inch collet or end mill holder to the toolholder manufacturer's specified clamping method. Verify runout after installation before beginning a cut.
