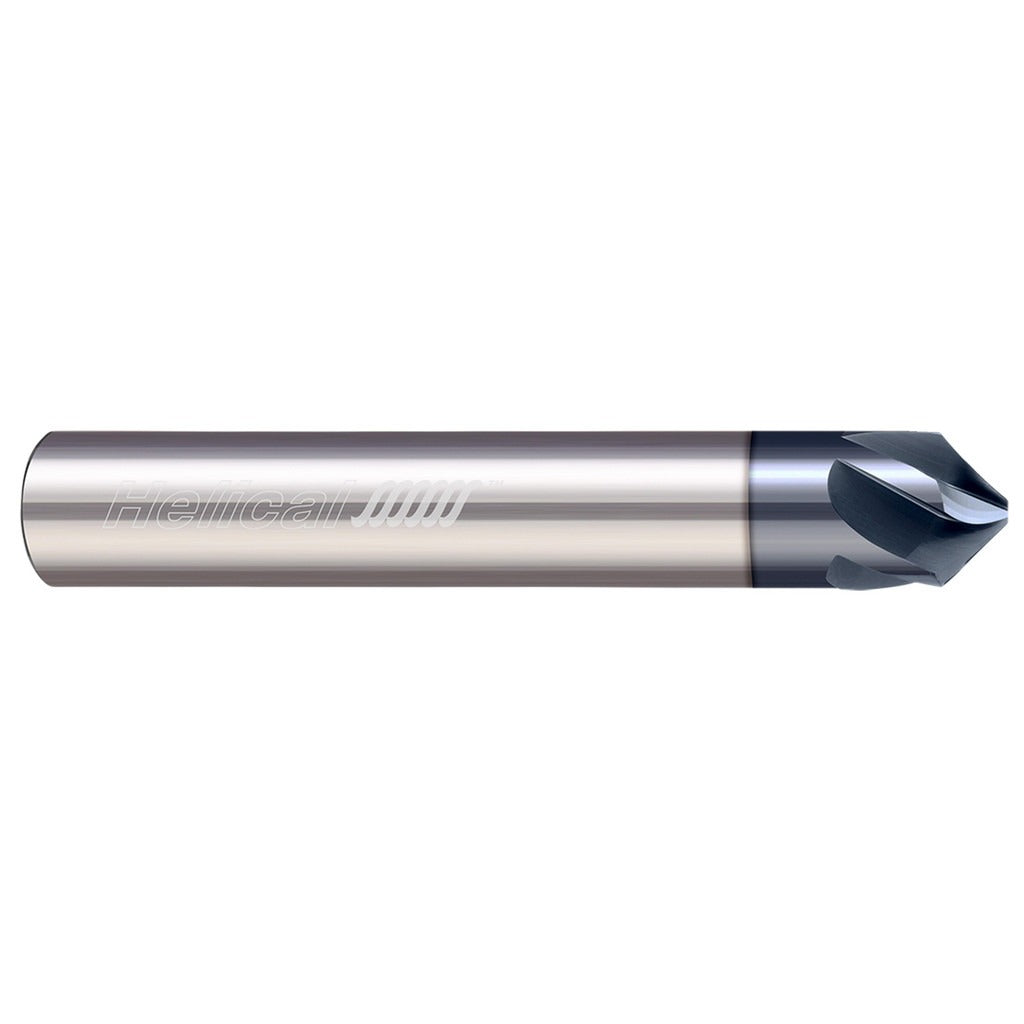

Helical Solutions 07028 Chamfer Mill 3/8 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 07028 is a single-end chamfer mill designed for chamfering, deburring, and edge-breaking operations on metal and hard materials. Built from solid carbide, it delivers the rigidity and heat resistance required for consistent cutting performance in demanding machining environments. The tool features a 90-degree included angle, a 3/8 inch cutter head diameter, and an Aplus coating that reduces friction and extends tool life. With 5 flutes and a right-hand cutting direction, it is suited for high-feed finishing passes where surface quality and edge definition matter. Machinists and CNC operators in job shops and production environments are the primary users.

This chamfer mill is intended for use on CNC machining centers and manual mills where precise chamfer geometry is required. It is applicable to ferrous and non-ferrous workpieces in both prototype and production runs. The 3/8 inch shank diameter makes it compatible with standard collet and end mill holders commonly found in shop environments. Its 2-1/2 inch overall length provides adequate reach for most standard chamfering applications without sacrificing rigidity.

Key Features

• Solid carbide construction for rigidity and heat resistance in demanding cuts
• Aplus coating reduces friction and improves tool life in ferrous materials
• 90-degree included angle for standard chamfering and deburring operations
• 5-flute design supports smooth finishes and efficient chip evacuation
• Right-hand cutting direction compatible with standard spindle rotation
• 3/8 inch shank fits standard collet systems and end mill holders

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill for CNC machining centers and manual milling machines equipped with standard 3/8 inch collet or end mill holder systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully in the collet or tool holder to the appropriate clamping depth before operation. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Follow the machine manufacturer guidelines and applicable shop safety protocols during setup and operation.
