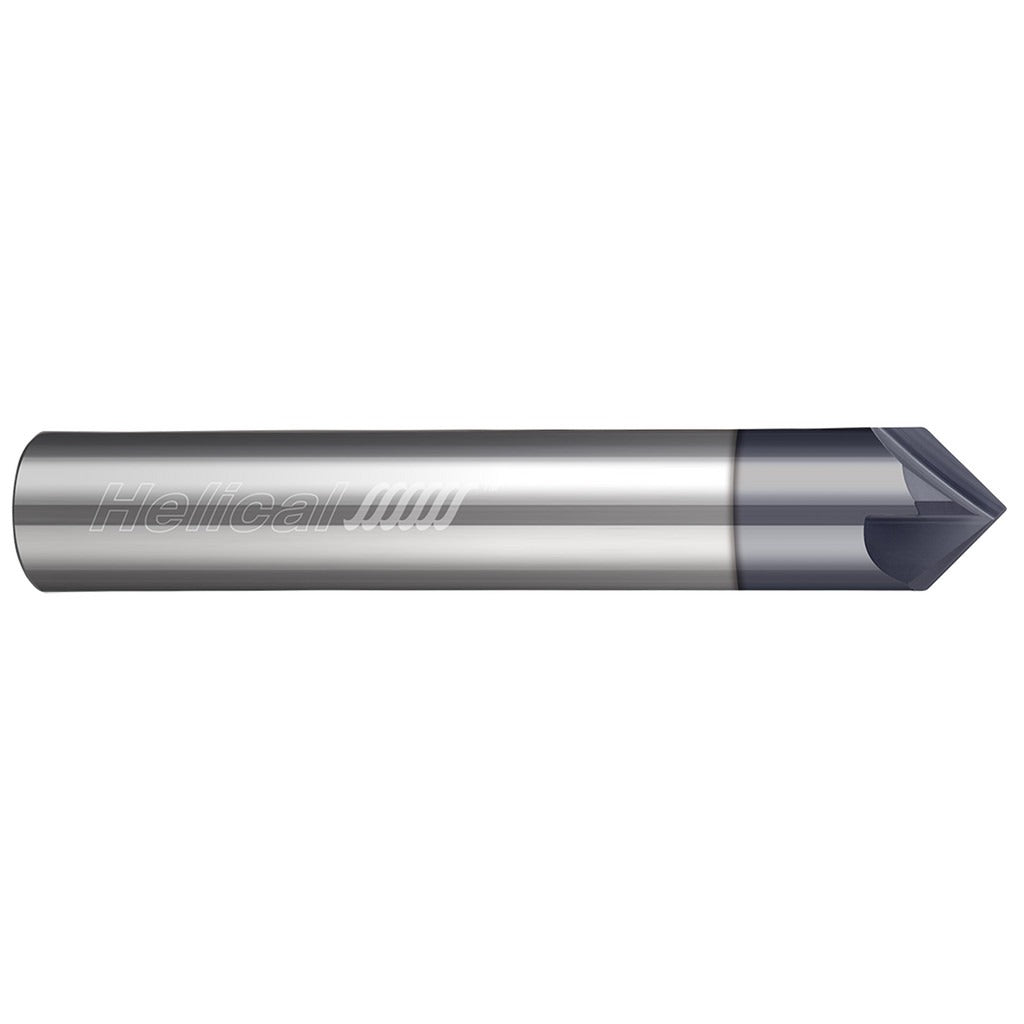

Helical Solutions 06153 Chamfer Mill 3/8 in 4 Flute Carbide

Product Description

The HELICAL SOLUTIONS 06153 is a solid carbide chamfer mill designed for precision chamfering and deburring operations on metal and hard materials. With a 3/8-inch cutting diameter and 4-flute geometry, it delivers clean, consistent chamfer angles in a single pass. The 90-degree included angle makes it well-suited for standard edge preparation work. An Aplus coating improves wear resistance and reduces heat buildup during high-speed cutting. Overall length is 2.5 inches, and the 3/16-inch length of cut keeps the effective cutting zone compact for controlled engagement. This tool is installed by machinists and CNC operators working in job shop and production environments.

This chamfer mill is used in milling operations on machining centers, CNC mills, and manual knee mills. Typical applications include edge breaking, countersinking, and chamfer profile generation on steel, aluminum, stainless, and other machinable metals. The right-hand cutting direction and single-end design are standard for conventional spindle rotation setups. It is a practical option for production runs and prototype work where consistent chamfer geometry is required on precision components.

Key Features

• Solid carbide construction for rigidity and long tool life in hard materials
• 4-flute design increases feed rate capability and surface finish quality
• Aplus coating reduces friction and extends tool life in abrasive materials
• 90-degree included angle for standard chamfer and deburring applications
• 3/16-inch length of cut for controlled edge engagement
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as an OEM-style replacement chamfer mill for use in standard 3/8-inch collet or end mill holder setups on CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or CNC operator. Secure the 3/8-inch shank in a properly sized collet or end mill holder and confirm runout before cutting. Power down the spindle completely before changing or inspecting the tool. Follow machine manufacturer guidelines for speeds and feeds when engaging carbide tooling in the workpiece material.
