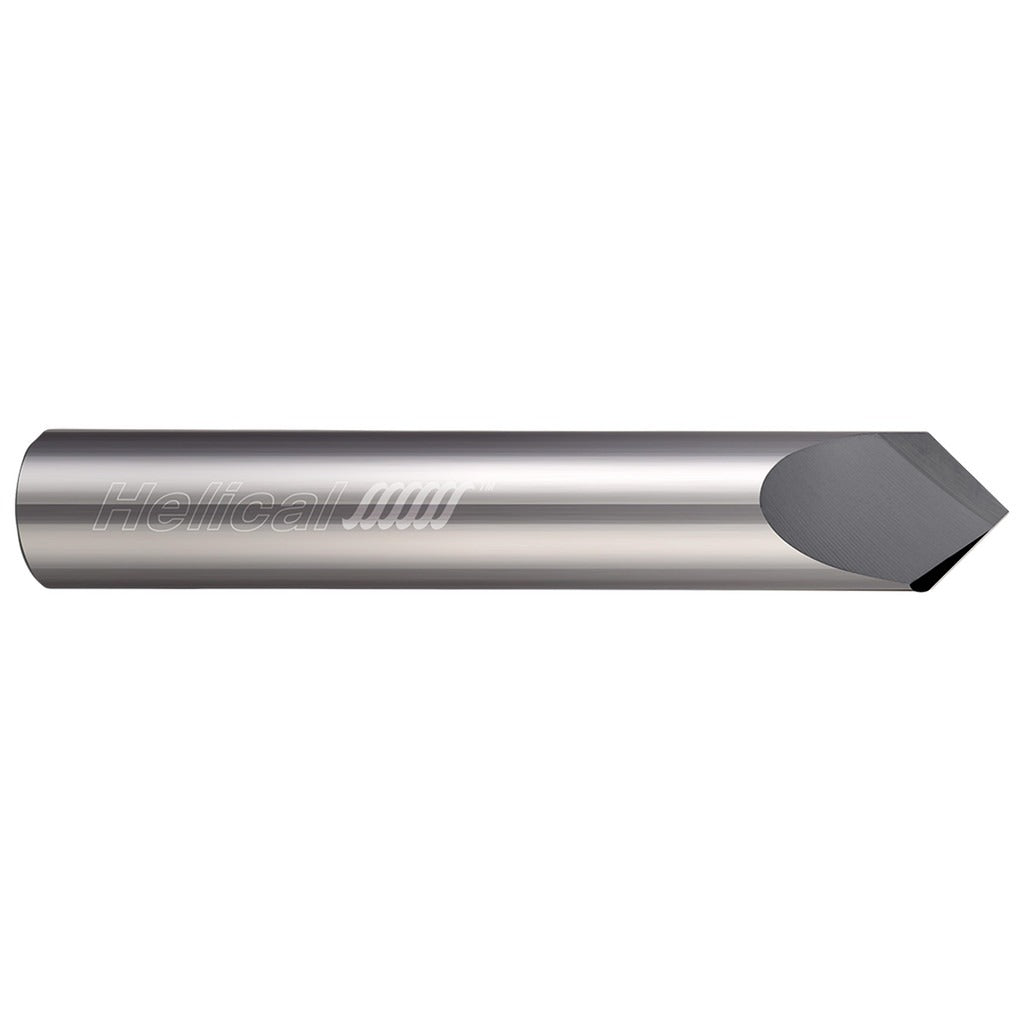

Helical Solutions 06030 Chamfer Mill 3/16 in 2 Flute Carbide

Product Description

The HELICAL SOLUTIONS 06030 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on machined workpieces. Built with a 90-degree included angle and a 3/16 inch cutter head diameter, this single-end tool cuts in the right-hand direction with 2 straight flutes for clean, controlled material removal. The bright/uncoated finish suits a broad range of base materials where coating interaction is a concern. With an overall length of 2 inches and a 3/16 inch shank, it fits standard collet toolholding systems used in CNC mills and manual vertical mills. Machinists, toolroom operators, and job shop technicians are the primary users of this style of end mill.

This chamfer mill is suited for light-duty chamfering and deburring tasks in both production and prototype environments. The 3/32 inch length of cut keeps the engagement zone tight, making it appropriate for precise edge treatment on aluminum, mild steel, plastics, and similar materials. It is commonly used in CNC machining centers and manual mills where consistent 90-degree chamfer geometry is required. The compact 3/16 inch diameter makes it especially useful for small-feature work and tight part geometries where larger chamfer mills cannot reach.

Key Features

• Solid carbide construction for rigidity and wear resistance in cutting applications
• 90-degree included angle delivers standard chamfer geometry on edges and holes
• 2 straight flutes provide clean chip evacuation during chamfering passes
• Bright/uncoated finish suitable for use across a wide range of workpiece materials
• 3/16 inch shank diameter fits standard collet and toolholder systems
• Single-end configuration with right-hand cutting direction for conventional mill spindles

Compatibility

Designed as a standard OEM-style chamfer mill for use in CNC machining centers and manual vertical mills accepting a 3/16 inch collet or toolholder. Part of the Helical Solutions Specialty Profiles Chamfer Mills Straight Flute 2 and 4 Flute series.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the 3/16 inch shank fully into a matching collet or end mill holder and verify runout before cutting. Ensure the machine spindle is fully stopped and the tool is locked before making any adjustments. Follow shop-standard speeds and feeds for the workpiece material and consult the manufacturer cutting data for this tool diameter and flute count.
