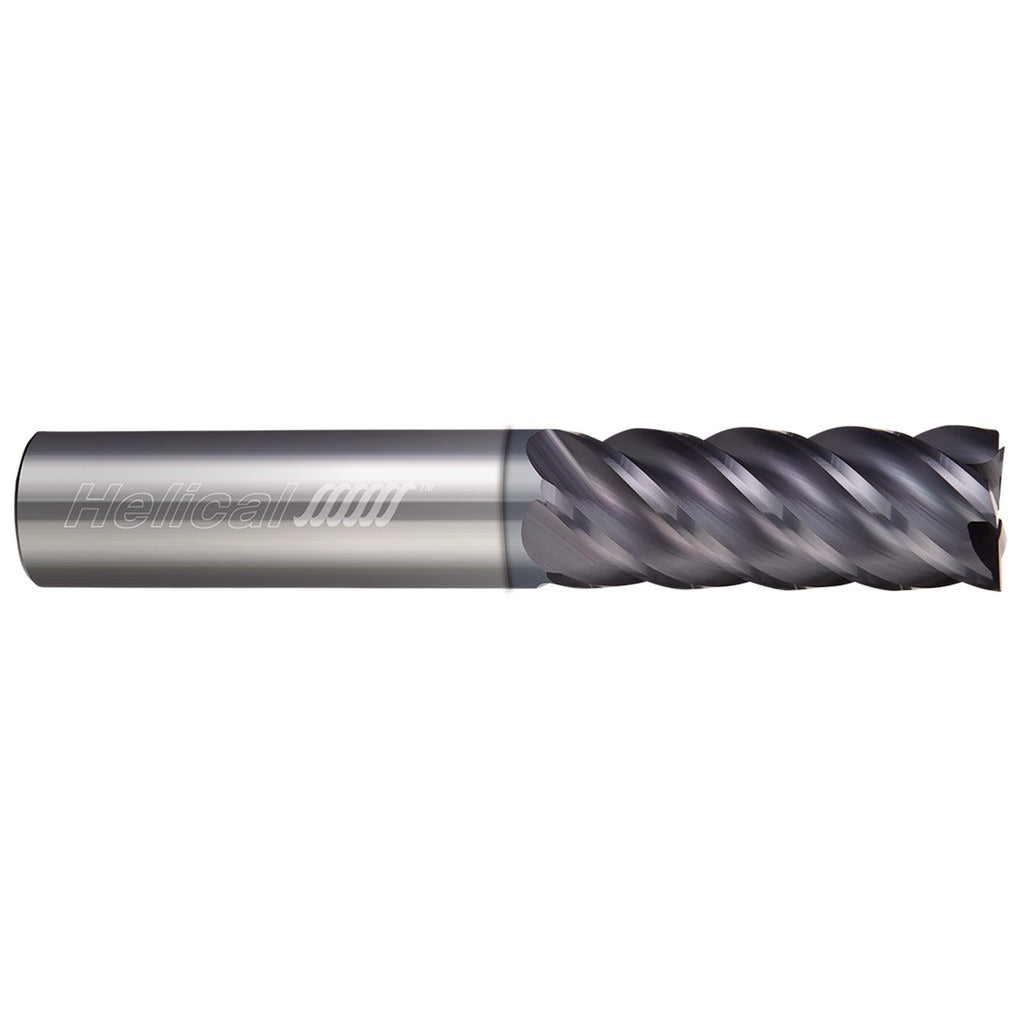

Helical Solutions 05142 Square End Mill 1/4 in 5 Flute Carbide

Product Description

The HELICAL SOLUTIONS 05142 is a 5-flute solid carbide square end mill designed for finish milling operations in steel and ferrous alloys. With a 1/4 inch cutting diameter and 3/4 inch length of cut, this tool is built for high-efficiency material removal and surface finishing in demanding CNC machining environments. The APLUS coating improves heat resistance and extends tool life in abrasive cutting conditions. Its right-hand cutting and right-hand helical flute geometry promote chip evacuation and reduce chatter during finish passes. Machinists and tool-and-die professionals working with steel workpieces rely on this geometry for tight-tolerance finishing work.

This end mill is suited for finish milling steel and similar ferrous materials in vertical machining centers and CNC mills. It is part of HELICAL SOLUTIONS End Mills for Steels - 5 Flute - Square - Finisher series, making it appropriate for shops running high-RPM finishing passes where surface finish and dimensional accuracy are priorities. The straight cylindrical shank fits standard 1/4 inch collets and end mill holders. It is a single-end, non-chipbreaker design with no variable helix or variable index, keeping it optimized for consistent finishing cuts rather than general roughing.

Key Features

• 5-flute helical geometry for improved surface finish and chip evacuation in steel
• APLUS coating for enhanced heat and wear resistance during high-speed finishing
• Solid carbide construction for rigidity and dimensional stability
• Centercutting capable, allowing plunge entry
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Straight cylindrical shank for use with standard collets and end mill holders

Compatibility

Part of the HELICAL SOLUTIONS End Mills for Steels - 5 Flute - Square - Finisher series. Designed for finish milling steel and ferrous alloys; fits any 1/4 inch collet or end mill holder on a compatible CNC milling machine or machining center.

Installation Notes

Installation and tool changes must be performed with the machine spindle stopped and locked out per standard machining safety procedures. Use a calibrated torque wrench and manufacturer-specified collet or end mill holder to secure the shank. Verify runout with a dial indicator before commencing cuts. A qualified machinist or CNC operator should set speeds, feeds, and depth of cut based on material, machine rigidity, and finishing requirements.
