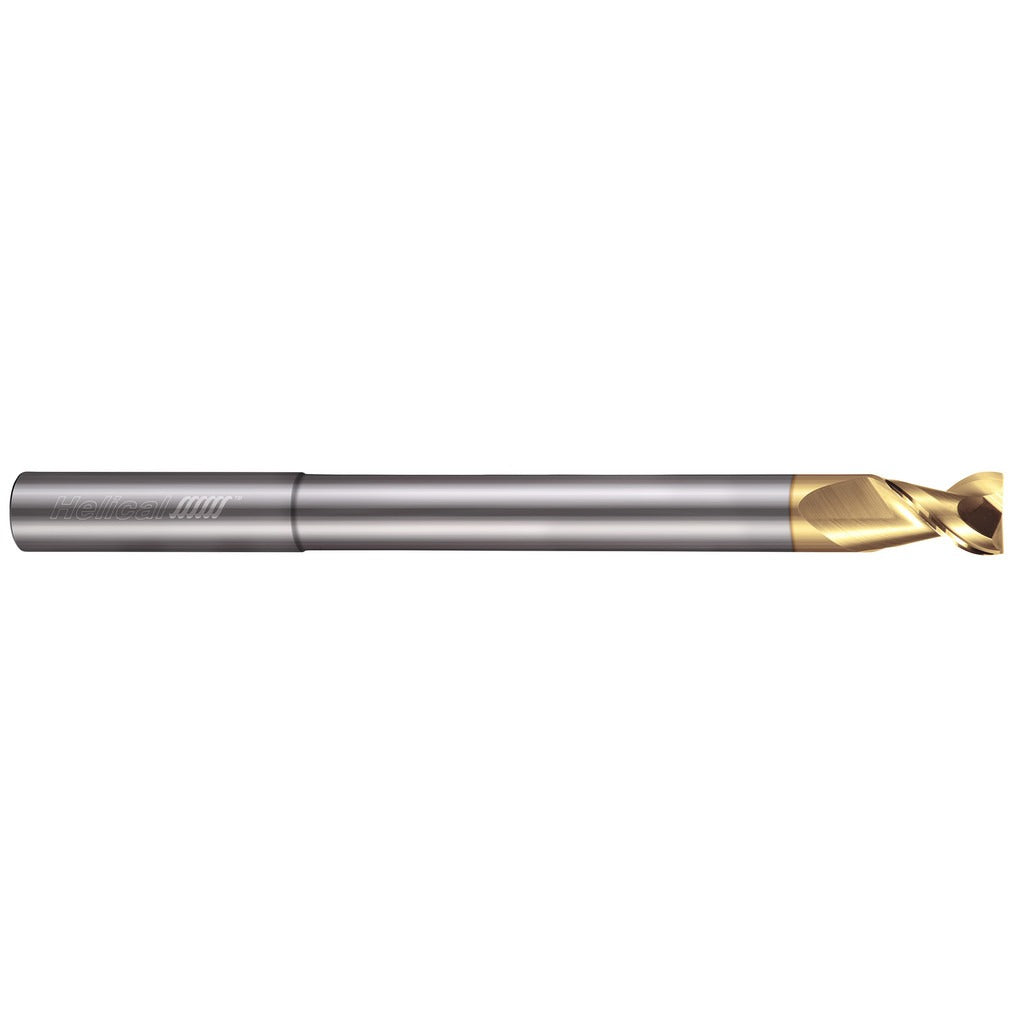

Helical Solutions 02302 1/2 in 2 Flute Carbide Square End Mill

Product Description

The HELICAL SOLUTIONS 02302 is a 2-flute solid carbide square end mill designed for high-performance milling in aluminum and non-ferrous materials. With a 1/2 inch mill diameter, a 45-degree helix angle, and a Zplus coating, this tool is built for aggressive material removal while maintaining a clean finish. The reduced neck geometry extends reach to 2.25 inches, keeping the tool rigid in deep-pocket and cavity applications. Centercutting capability allows direct plunge entry without a pre-drilled pilot hole. This end mill is intended for use by machinists and CNC operators in production and job shop environments.

The 02302 is suited for aluminum, aluminum alloys, and other soft non-ferrous materials where chip evacuation and surface finish are priorities. The right-hand cut and right-hand flute direction are standard for conventional CNC milling setups. The reduced neck and extended reach design make it well-suited for deep-pocket milling, shoulder milling, and contour operations where standard-length tools cannot safely access the workpiece. The straight cylindrical shank accepts standard 1/2 inch collets and tool holders.

Key Features

• 45-degree helix angle optimized for aluminum chip evacuation and reduced cutting forces
• Zplus coating improves lubricity and edge life in non-ferrous applications
• Reduced neck with 2.25 inch reach length for deep-pocket and cavity access
• Centercutting design allows direct plunge milling
• 2-flute geometry maximizes chip clearance in gummy materials
• Right-hand cut and right-hand spiral for standard CNC spindle compatibility

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC machining centers and manual mills equipped with 1/2 inch collets or end mill holders; intended primarily for aluminum and non-ferrous milling applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, powered-down state before loading or changing tooling. Seat the shank fully into a properly sized 1/2 inch collet or end mill holder and torque the retention mechanism per the tool holder manufacturer specifications. Verify runout with a dial indicator before beginning a production cut, as excessive runout accelerates edge wear and degrades surface finish.
