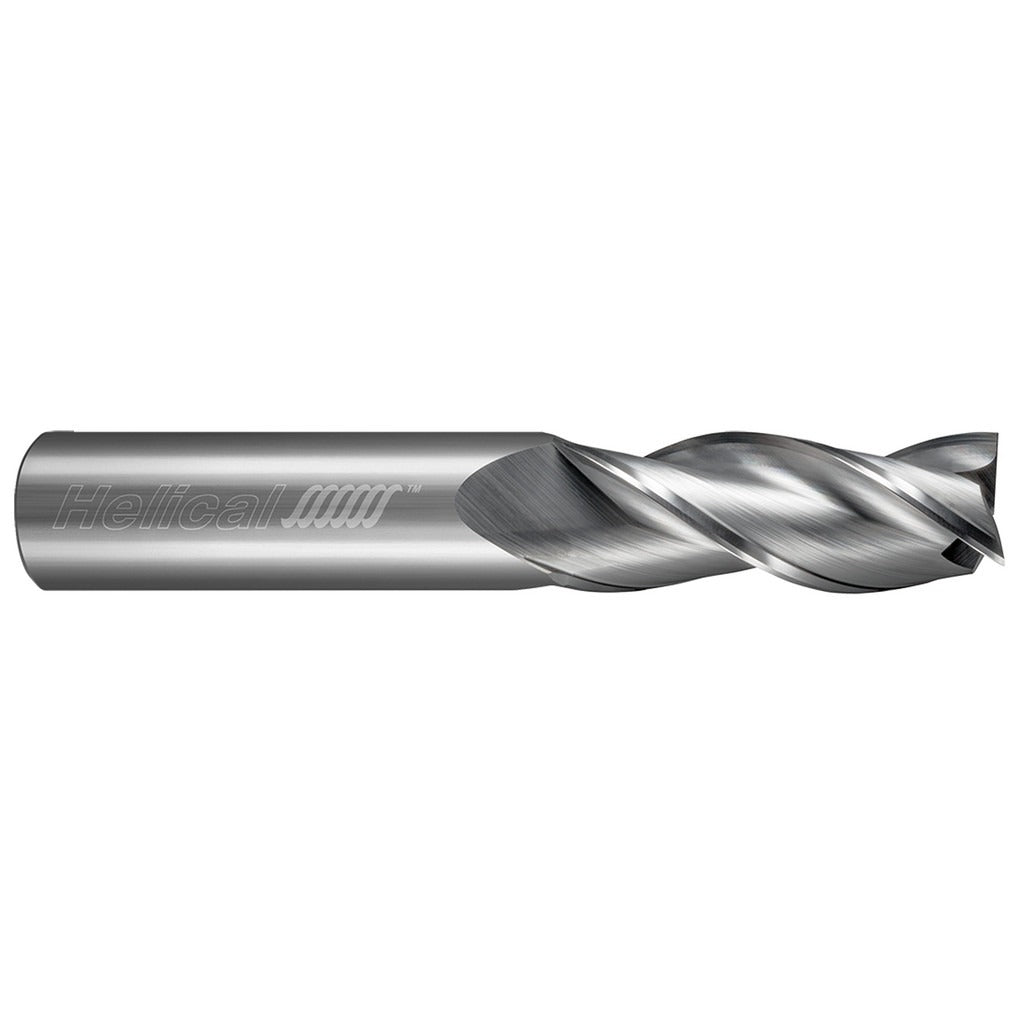

Helical Solutions 01165 Square End Mill 1/4 in 3 Flute Carbide

Product Description

The HELICAL SOLUTIONS 01165 is a 3-flute solid carbide square end mill designed for high-performance milling in aluminum and non-ferrous materials. With a 1/4 inch (0.25 inch) cutting diameter and a 35-degree right-hand helical flute geometry, it is engineered to evacuate chips efficiently and reduce built-up edge in gummy alloys. The bright, uncoated finish keeps the cutting edge sharp and allows for easy visual wear inspection. The 5/8 inch length of cut pairs with a 2.5 inch overall length, making it well suited for pocket milling, slotting, and profiling operations in CNC machining centers.

This end mill is intended for machinists and CNC operators working in job shops, production facilities, and aerospace or automotive environments where aluminum and soft non-ferrous alloys are the primary workpiece materials. The centercutting capability allows plunge entry, expanding its use in interpolated bore and pocket applications. The straight cylindrical 1/4 inch shank fits standard ER collets and end mill holders commonly found on vertical machining centers and CNC routers.

Key Features

• 3-flute helical flute design promotes chip clearance and smooth surface finish in aluminum
• 35-degree helix angle reduces cutting forces and minimizes chatter
• Solid carbide construction provides rigidity and wear resistance over high-speed runs
• Centercutting geometry enables direct plunge entry into workpiece material
• Bright, uncoated finish suited for aluminum and non-ferrous alloys where coating adhesion is not needed
• Right-hand cut and right-hand flute direction compatible with standard CNC spindle rotation

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for CNC machining applications requiring a 1/4 inch diameter, 3-flute, straight-shank tool in the HELICAL SOLUTIONS End Mills for Aluminum series.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the tool changer or collet is de-energized before inserting or removing the end mill. Use a properly sized ER collet or end mill holder and torque to the toolholder manufacturer specification for the shank diameter. Inspect the collet bore and shank for chips or burrs before seating to avoid runout that can accelerate tool wear.
