Helical 82672 High Feed E.M. 3/8 in Dia Cutting Tplus

Product Description

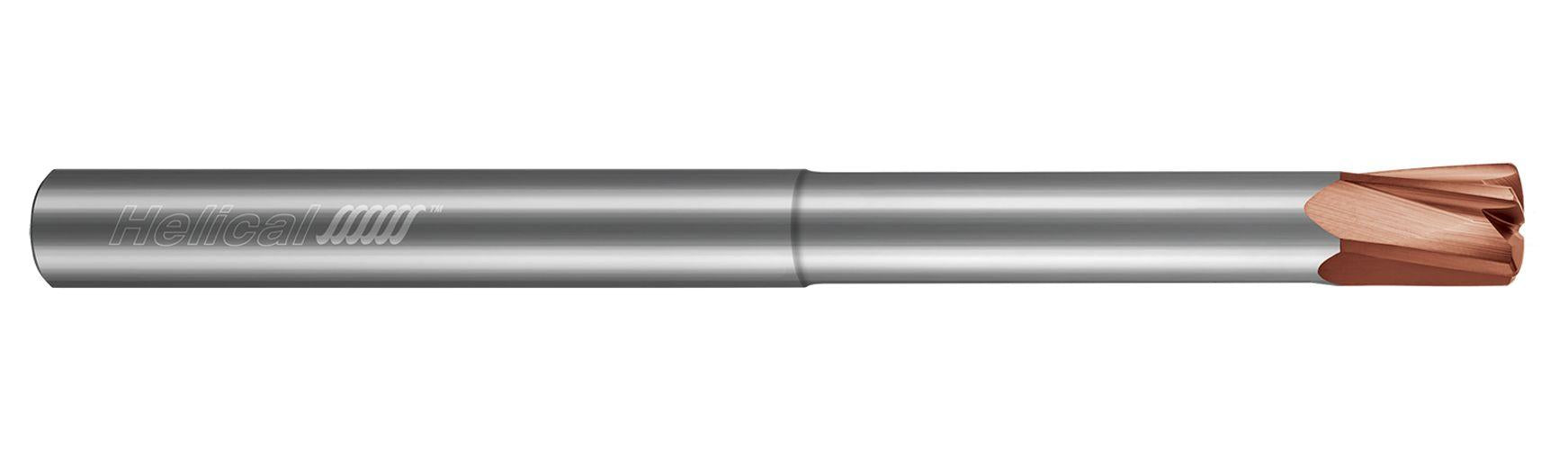

The Helical 82672 High Feed End Mill is a solid carbide tool designed for high performance in machining applications. This cutter features a diameter of three-eighths of an inch and a shank diameter of three-eighths of an inch. The tool combines efficiency with durability, making it suitable for various materials, including steel and stainless steel.

• Five flutes enhance chip removal and cutting speed.
• Tplus coating improves wear resistance and tool life.
• Overall length of four inches allows for deep cutting applications.

Product Highlights

The Helical 82672 is a center-cut, right-hand cutting tool ideal for milling operations. It excels in producing fine finishes with its advanced design and carbide construction.

Product Information

Standard Information

• Brand: Helical
• Part Number: HEL-82672

Technical Specifications

• Diameter: 0.3750 inches (3/8)
• Shank Diameter: 0.3750 inches (3/8)
• Flute Length: 0.3750 inches (3/8)
• Overall Length: 4.0000 inches
• Corner Radius: 0.0300 inches
• Number of Flutes: 5
• Coating/Finish: AlTiN Nano
• End/Corner Shape: Feed Mill
