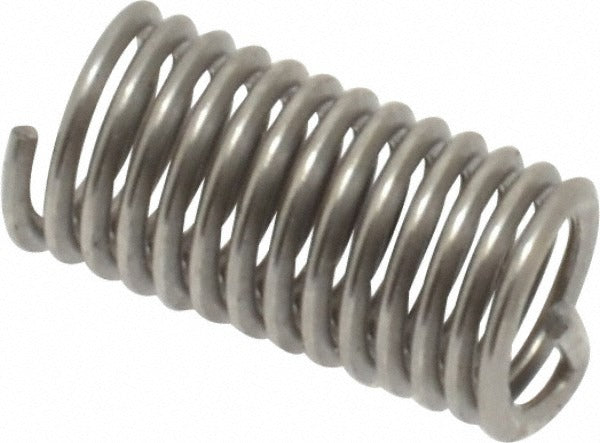

Heli-coil A1185-2CN492 8-32 Unc Free Running Insert

Product Description

The HELI-COIL A1185-2CN492 is a free running helical wire thread insert designed to create or restore durable 8-32 UNC internal threads in parent materials. Manufactured from 304 stainless steel with a bright, uncoated finish, this insert provides corrosion resistance and long service life in demanding environments. At 0.492 inches overall length, it represents a 3D length-to-diameter ratio, making it suited for applications where deeper thread engagement is required for reliable fastener retention. Installation requires a proper HELI-COIL tap and installation tool for the 8-32 thread series.

Free running inserts are used where standard thread engagement is needed without locking torque. Common applications include thread repair in aluminum, magnesium, plastic, and other soft or damaged base materials across HVAC equipment housings, electrical enclosures, pump bodies, and general mechanical assemblies. The tanged design allows for installation using a standard drive tool; the installation tang is removed after the insert is seated. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• 8-32 UNC thread size for standard unified coarse thread applications
• 304 stainless steel construction for corrosion resistance
• 0.492 inches overall length at a 3D length-to-diameter ratio for strong thread engagement
• Tanged design compatible with standard HELI-COIL installation tools
• Bright, uncoated finish - no coating to interfere with thread fit
• 13-1/4 free coils for consistent load distribution along the thread length

Compatibility

Designed as an OEM-style free running thread insert for use with 8-32 UNC tapped holes prepared with the appropriate HELI-COIL series tap and installation tool.

Installation Notes

Installation is performed using a HELI-COIL tap sized for the 8-32 insert series and a matching drive tool - do not attempt installation with standard taps or improvised tools. Ensure the parent material is clean and free of debris before tapping and inserting. After the insert is fully seated flush with or slightly below the surface, remove the installation tang using a tang break-off tool or suitable punch. Follow applicable torque and thread-repair specifications for the equipment being serviced.
