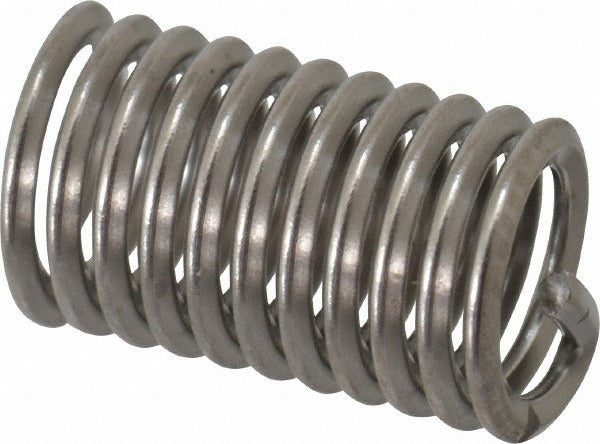

Heli-coil A1185-2CN410 Free Running Insert 8-32 Unc

Product Description

The HELI-COIL A1185-2CN410 is a free running helical wire thread insert designed to repair damaged internal threads or establish new threads in softer base materials. Manufactured from 304 stainless steel with a bright, uncoated finish, this insert accepts 8-32 UNC fasteners and measures 0.41 inches in overall length at a 2-1/2D length-to-diameter ratio. The tanged style allows standard installation tooling to drive and seat the insert, after which the tang is broken off flush. Maintenance technicians, machinists, and field service professionals use these inserts to restore thread integrity in aluminum, cast iron, and other materials without replacing the host component.

This insert is suited for light fastener applications in machinery, enclosures, panels, and equipment housings where an 8-32 UNC thread is specified. The 2-1/2D length-to-diameter ratio provides a longer thread engagement zone compared to shorter 1D or 1.5D inserts, making it appropriate for applications that require additional pull-out resistance. Minimum order quantity is 10 inserts. Package quantity is 1 insert per package unit.

Key Features

• 8-32 UNC thread size for compatibility with standard inch-series fasteners
• 304 stainless steel construction resists corrosion in demanding service environments
• Tanged design works with standard HELI-COIL installation tools for consistent seating depth
• 2-1/2D length-to-diameter ratio provides extended thread engagement for improved pull-out strength
• 10-3/4 free coils deliver uniform load distribution across the installed thread form
• Bright, uncoated finish maintains dimensional accuracy without added coating buildup

Compatibility

Designed as an OEM-style threaded insert for use in any 8-32 UNC tapped hole prepared to HELI-COIL specification for a 2-1/2D tanged free running insert.

Installation Notes

Installation requires a properly sized HELI-COIL tap and mandrel-style installation tool matched to the 8-32 thread size and insert length. Ensure the host material is securely fixtured and the tap hole is drilled and tapped to the correct oversize specification before driving the insert. After the insert is fully seated one-quarter to one-half turn below the surface, break the installation tang with a tang break-off tool and remove the fragment from the bore. Follow applicable shop standards and equipment manufacturer guidelines when restoring thread forms in structural or load-bearing assemblies.
