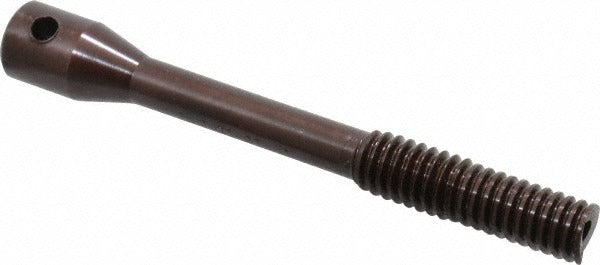

Heli-coil 8253-5 Unc Mandrel Thread Insert Tool 5/16-18

Product Description

The HELI-COIL 8253-5 is a mandrel-type power installation tool designed for driving helical wire thread inserts into pre-tapped holes. Used with a power driver or drill, the mandrel engages the tang of the insert and winds it into the threaded hole to the correct depth. This tool is rated for 5/16-18 UNC thread size and is compatible with both bulk inserts and strip feed inserts, making it a versatile option for high-volume or production-line applications. It is typically used by maintenance technicians, assembly professionals, and field service personnel working on threaded-hole repair or thread reinforcement tasks in metal, plastic, or composite materials.

This tool is suited for applications where manual installation is too slow or impractical. The 5/16-18 UNC sizing matches standard fractional thread patterns common in HVAC equipment frames, mechanical assemblies, and light structural components. Power installation reduces operator fatigue and improves insert seating consistency across repeated installations. Compatible with bulk inserts and strip feed inserts for workflow flexibility on the bench or in the field.

Key Features

• Mandrel drive design for use with power tools or electric screwdrivers
• Sized for 5/16-18 UNC thread - standard fractional coarse thread
• Compatible with both bulk inserts and strip feed inserts
• Speeds up insert installation in production and repair environments
• Reduces inconsistency compared to manual tang-drive methods

Compatibility

Compatible with HELI-COIL bulk inserts and strip feed inserts in 5/16-18 UNC thread size. Designed for use as a power installation tool within the HELI-COIL thread insert system for that thread specification.

Installation Notes

Install by a qualified technician or assembler familiar with helical thread insert systems. Ensure the tapped hole meets the required HELI-COIL tap drill specification for 5/16-18 UNC before driving the insert. Chuck the mandrel securely into a power screwdriver or drill set to a low torque clutch setting to avoid over-driving the insert. After installation, break off the drive tang using the appropriate tang break-off tool per standard helical insert installation procedure.
