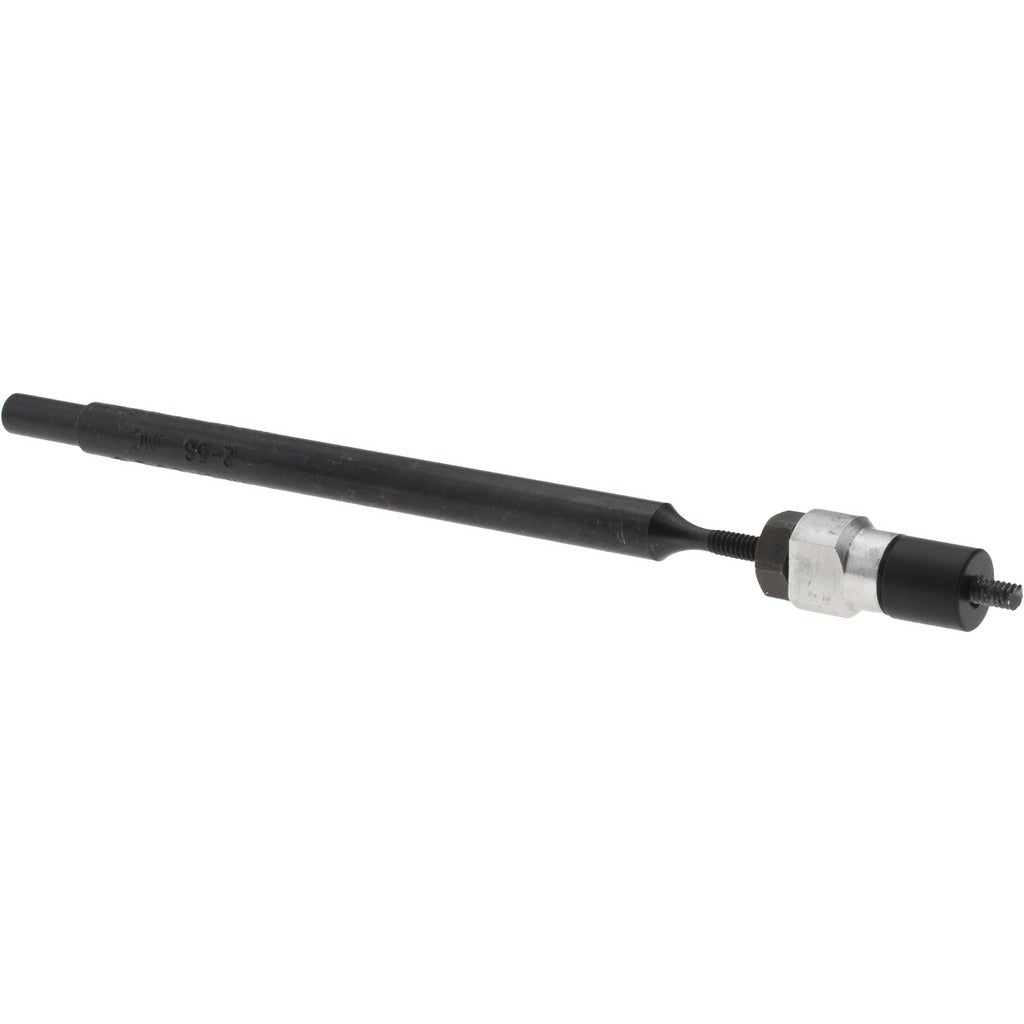

Heli-coil 8051-02 Mandrel Power Install Tool 2-56 Unc

Product Description

The HELI-COIL 8051-02 is a mandrel-type power installation tool designed to drive helical wire thread inserts into pre-tapped holes. It is used to install bulk-packaged Heli-Coil inserts at the 2-56 UNC thread size, making it well suited for high-volume production and repair environments where manual installation tools are too slow. The tool accepts a power driver and engages the insert tang to spin the insert into the tapped bore, seating it to the correct depth. Machinists, maintenance technicians, and production assemblers working on small-fastener applications are the primary users of this tool.

This tool is intended for use in applications that call for 2-56 UNC threaded inserts, a very fine, small-diameter thread common in electronics enclosures, instrumentation panels, optical equipment, and lightweight metal fabrication. It is compatible with bulk insert configurations at the 2-56 UNC specification and is appropriate for both production-line use and field repair scenarios where insert installation speed and consistency are required.

Key Features

• Mandrel drive design for use with power installation equipment
• Sized for 2-56 UNC thread inserts
• Compatible with bulk-packaged Heli-Coil thread inserts
• Speeds up insert installation in high-volume or repetitive tasks
• Consistent seating depth compared to manual installation methods

Compatibility

Designed for use with bulk Heli-Coil thread inserts at the 2-56 UNC thread size. Verify insert packaging type and thread specification before ordering to confirm fitment with your existing tooling setup.

Installation Notes

Installation should be performed by a machinist or qualified technician familiar with thread insert procedures. Ensure the tapped hole meets the correct Heli-Coil tap specification for 2-56 UNC before driving the insert. Secure the workpiece before operation and set power tool torque to a level appropriate for small-diameter inserts to avoid overdriving or thread damage. Remove the drive tang after installation using the appropriate tang break-off tool if required.
