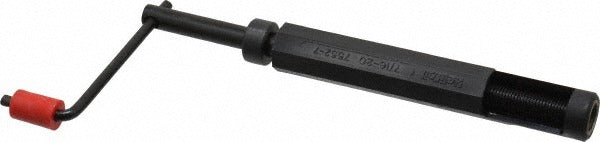

Heli-coil 7552-7 Thread Insert Tool 7/16-20 Unf Prewinder

Product Description

The HELI-COIL 7552-7 is a Type II prewinder hand installation tool designed for installing 7/16-20 UNF thread inserts without power equipment. The tool accepts both free-running and locking thread insert types, making it a versatile addition to any shop or field repair kit. The prewinder body measures 25/32 inches in diameter, with an overall prewinder length of 5.25 inches and a spinner diameter of 3-23/32 inches. HVAC technicians, plumbers, electricians, and general maintenance pros use this tool when restoring stripped or damaged threads in metal components using helical wire thread inserts.

This tool is used in applications where hand-driven thread insert installation is required, such as tapped hole repair in aluminum housings, cast iron components, or other base materials where thread inserts restore original thread integrity. The 7/16-20 UNF size is common in fastener-critical assemblies found in HVAC equipment, pumps, compressors, and mechanical systems. It is suited for both shop bench work and field service where powered installation tools are unavailable or impractical.

Key Features

• Installs 7/16-20 UNF thread inserts by hand without power tools
• Compatible with both free-running and locking insert types
• Type II prewinder design for controlled, accurate insert placement
• Prewinder body diameter of 25/32 inches for stable grip and alignment
• Spinner diameter of 3-23/32 inches for comfortable hand operation
• Overall prewinder length of 5.25 inches suits standard insert depths

Compatibility

Designed for use with free-running and locking helical wire thread inserts in the 7/16-20 UNF thread size, consistent with HELI-COIL and equivalent insert systems requiring a Type II prewinder installation tool.

Installation Notes

This tool is hand-operated and requires no power source. Before installing a thread insert, verify the parent hole has been drilled and tapped to the correct insert tap size for the 7/16-20 UNF specification. Ensure the work piece is secured and the threaded hole is clean and free of debris before loading the insert onto the prewinder. Follow the insert manufacturer's installation procedure for proper seating depth and tang break-off where applicable.
