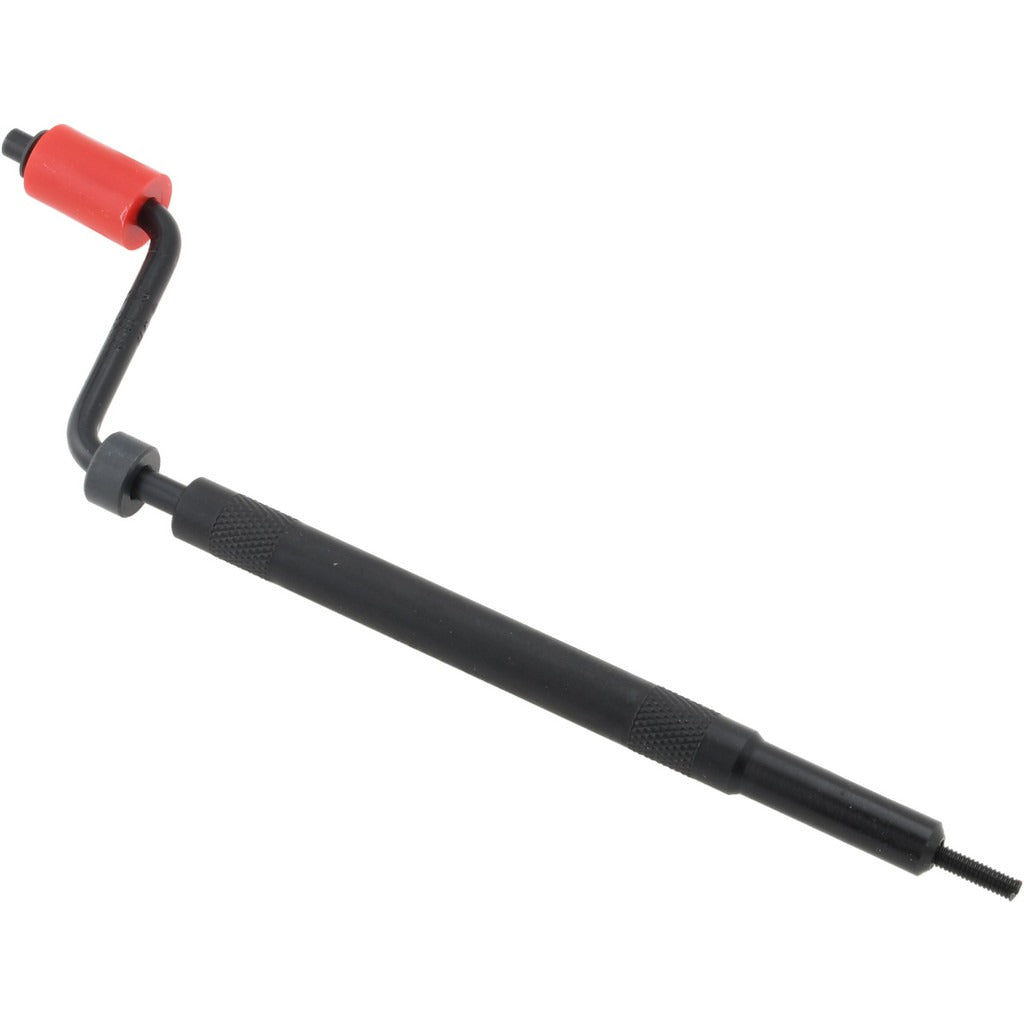

Heli-coil 7552-06 Thread Insert Tool 6-40 Unf Prewinder

Product Description

The HELI-COIL 7552-06 is a hand installation tool designed for setting threaded wire inserts in UNF 6-40 applications. Built as a Type II Prewinder, it preloads the insert onto the mandrel before driving it into the prepared hole, reducing installation errors and cross-threading. The prewinder body measures 3/8 inch in diameter, the spinner diameter is 2-9/32 inches, and the overall prewinder length is 4-5/8 inches. It is compatible with both free-running and locking insert types, making it a versatile hand tool for thread repair and thread reinforcement work across a range of materials.

This tool is used wherever 6-40 UNF threaded wire inserts need to be installed by hand in production, maintenance, or repair environments. Typical applications include aerospace component repair, precision machinery maintenance, and general metalworking where thread integrity is critical. Machinists, maintenance technicians, and assembly professionals use this tool when installing HELI-COIL or compatible threaded inserts into pre-tapped holes.

Key Features

• Prewinder Type II design preloads insert onto mandrel before installation, improving accuracy and reducing errors
• Compatible with both free-running and locking 6-40 UNF threaded wire inserts
• Prewinder body diameter of 3/8 inch suits confined and standard access environments
• Spinner diameter of 2-9/32 inches provides controlled torque during hand installation
• Overall prewinder length of 4-5/8 inches for balanced tool handling
• Hand operation requires no power source, suitable for field and bench use

Compatibility

Designed for use with free-running and locking threaded wire inserts in 6-40 UNF thread size. Consult insert manufacturer documentation to confirm insert series compatibility before use.

Installation Notes

Install the threaded insert onto the prewinder mandrel before inserting into the tapped hole, following the insert manufacturer installation sequence. Ensure the receiving hole is tapped to the correct STI (Screw Thread Insert) tap size for 6-40 UNF prior to installation. Use steady, consistent hand pressure on the spinner to drive the insert to the correct depth without over-driving. Wear appropriate eye protection when working with small threaded inserts and metal chips.
