Heli-coil 7551-3 Thread Insert Hand Tool 10-24 Unc

Product Description

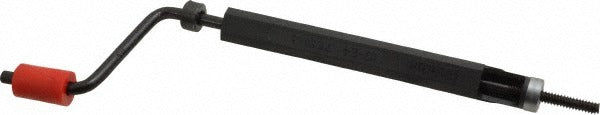

The HELI-COIL 7551-3 is a hand installation tool designed for setting wire thread inserts into pre-tapped holes. It accepts both free-running and locking insert types and is sized for 10-24 UNC thread. The tool uses a Type II Prewinder design, which winds the insert onto the mandrel before driving it into the threaded hole. With a prewinder body diameter of 15/32 inches, a spinner diameter of 2-9/32 inches, and an overall prewinder length of 4-5/8 inches, this tool gives technicians controlled, repeatable insert installation without power equipment. Total weight is 0.15 pounds, making it easy to handle in tight work areas.

This tool is used wherever HELI-COIL wire thread inserts must be installed by hand. Typical applications include thread repair and reinforcement in aluminum, magnesium, and other soft-metal housings found in HVAC equipment, compressors, pump bodies, electrical enclosures, and general mechanical assemblies. It is sized specifically for 10-24 UNC fastener threads, a common size across commercial and industrial equipment. Maintenance technicians, millwrights, and field service professionals use this tool when access or material conditions rule out power-assisted installation.

Key Features

• Type II Prewinder design winds the insert onto the mandrel before installation for controlled thread engagement
• Compatible with both free-running and locking HELI-COIL wire thread inserts in 10-24 UNC
• Prewinder body diameter of 15/32 inches for accurate bore alignment
• Spinner diameter of 2-9/32 inches provides good grip and torque control during hand operation
• Compact 4-5/8 inch prewinder length suited for use in confined spaces
• Lightweight at 0.15 pounds for extended use without fatigue

Compatibility

Designed for use with HELI-COIL free-running and locking wire thread inserts in 10-24 UNC thread size.

Installation Notes

This tool is installed and operated by hand - no power source is required. Before use, verify the receiving hole has been drilled and tapped to the correct HELI-COIL specification for 10-24 UNC inserts. Ensure the insert is properly loaded onto the prewinder mandrel before driving. Do not apply excessive downward force during installation, as this can damage the insert or the tapped hole.
