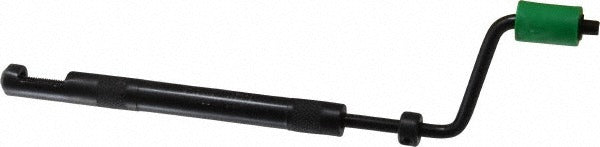

Heli-coil 5552-3 Thread Insert Tool 10-32 Unf

Product Description

The HELI-COIL 5552-3 is a hand installation tool designed for driving Stud-Lock thread inserts into 10-32 UNF tapped holes. It provides the mechanical engagement needed to seat wire-thread inserts accurately without power tools, making it the standard choice for field repairs, assembly work, and thread restoration on aluminum, cast iron, and other materials where stripped or damaged threads are common. The tool is compatible with the 10-32 UNF thread standard and is built specifically for Stud-Lock insert compatibility, ensuring proper torque transfer and consistent seating depth during installation.

This tool is used wherever HELI-COIL Stud-Lock inserts are installed by hand, including maintenance and repair operations in HVAC equipment, mechanical assemblies, and light industrial applications. It is well suited for technicians working in the field who need a reliable, manual method to install thread inserts without access to power installation equipment. The compact form factor makes it practical for tight spaces common in equipment service work.

Key Features

• Designed for hand installation of Stud-Lock thread inserts in 10-32 UNF threaded holes
• Compatible with Stud-Lock insert type for secure, vibration-resistant thread repair
• Manual operation - no power tools required, suitable for field service
• Lightweight at 0.25 pounds for easy single-hand use
• Engineered to the UNF thread standard for dimensional accuracy

Compatibility

Designed for use with HELI-COIL Stud-Lock thread inserts with a minimum thread size of 10-32 UNF. Confirm insert series and thread size match before use.

Installation Notes

Installation of thread inserts is typically performed by machinists, maintenance technicians, or HVAC and mechanical service professionals. Before installing any thread insert, ensure the parent material has been tapped to the correct HELI-COIL oversize tap specification for the 10-32 UNF insert. Power down any equipment and secure all moving parts before beginning thread repair work. Do not use this hand tool with power drivers, as over-torquing may damage the insert or the parent thread.
