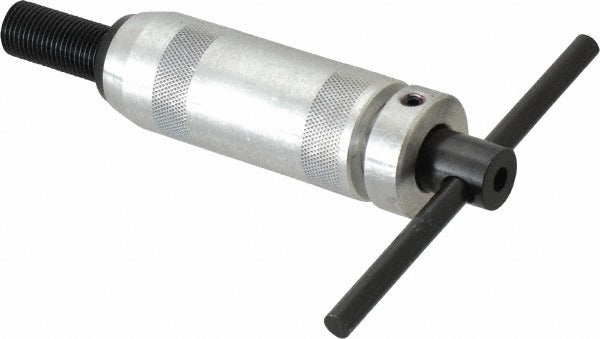

Heli-coil 535-9 Thread Insert Hand Installation Tool 9/16-18 Unf

Product Description

The HELI-COIL 535-9 is a hand installation tool designed for installing wire thread inserts into 9/16-18 UNF tapped holes. It uses a Type IV Non-Captive Prewinder mechanism that pre-winds the insert onto the mandrel before driving it into the parent material. The prewinder style eliminates the need to manually start the insert, reducing installation time and the risk of cross-threading. With a spinner diameter of 1.125 inches and a prewinder length of 2.875 inches, this tool is sized for controlled, single-handed operation. It is used by machinists, field maintenance techs, and assembly technicians across industrial, automotive, and general mechanical applications.

This tool is suited for repair and production use wherever 9/16-18 UNF thread inserts must be installed by hand. Typical applications include restoring stripped threads in aluminum, cast iron, and steel components. The tool accommodates both free-running and locking insert types, making it a single tool for multiple insert variants at this thread size. It is well suited for field repair work where a torque driver or power installation tool is not available or practical.

Key Features

• Type IV Non-Captive Prewinder pre-winds insert onto mandrel before installation, reducing cross-threading risk
• Compatible with both free-running and locking wire thread inserts at 9/16-18
• Spinner diameter of 1.125 inches provides grip surface for manual torque input
• Prewinder length of 2.875 inches allows access in moderately recessed bores
• Designed for UNF thread standard inserts only at this thread size

Compatibility

Designed for use with free-running and locking wire thread inserts in 9/16-18 UNF thread size. Compatible insert types and specific insert part numbers should be verified against HELI-COIL insert product lines for the 9/16-18 UNF specification.

Installation Notes

Installation is performed by hand and does not require power tools or torque equipment. Before installing any thread insert, ensure the tapped hole meets the correct oversize drill and tap specifications for the insert being used. Always verify the parent material thread has been properly prepared and deburred before driving the insert. This tool is for hand use only and should not be adapted to power drivers without confirmation from the manufacturer.
