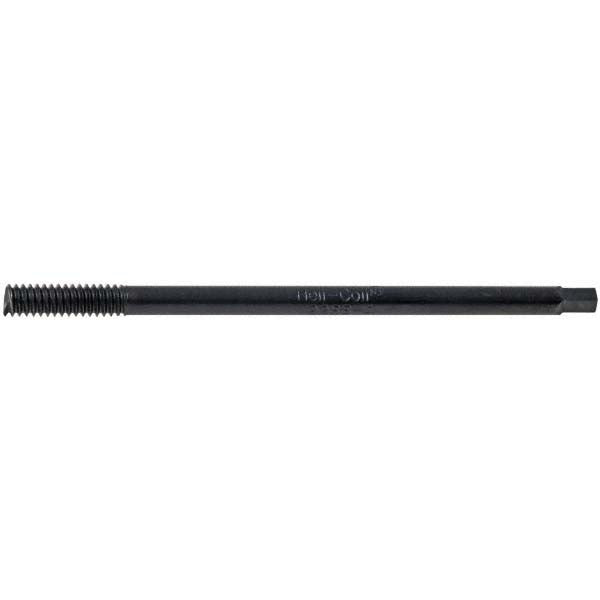

Heli-coil 4973-12 Thread Insert Tool M12 X 1.50

Product Description

The HELI-COIL 4973-12 is a hand installation tool designed to drive threaded wire inserts into pre-tapped holes. It accepts M12 x 1.50 metric fine thread inserts and delivers precise, controlled installation without power tools. The tool engages the tang of the insert and winds it into the prepared bore with a standard wrench or screwdriver handle, seating the insert flush or below the surface. Licensed technicians, machinists, and field service professionals working on threaded repair applications in aluminum, cast iron, or other materials rely on this type of tool to complete installations cleanly and correctly.

This tool is used wherever HELI-COIL or compatible wire thread inserts are installed in M12 x 1.50 metric fine tapped holes. Common applications include engine component repair, transmission housing threads, equipment frame repairs, and any precision mechanical assembly that calls for a metric fine thread insert in that size. It is suited for both shop bench work and field repair scenarios where hand control is preferred over powered installation.

Key Features

• Sized specifically for M12 x 1.50 metric fine thread inserts
• Hand-operated design allows controlled, torque-sensitive installation
• Insert tool type engages the drive tang for accurate seating depth
• Compatible with standard wire thread insert installation procedures
• Compact hand tool format suits both shop and field use

Compatibility

Designed for use with M12 x 1.50 metric fine thread wire inserts. Consult insert manufacturer documentation to confirm tool-to-insert compatibility before installation.

Installation Notes

Installation of threaded inserts should be performed by a qualified machinist or mechanical technician familiar with thread repair procedures. Ensure the tapped hole meets the correct diameter and thread specification for the insert size before driving the insert. Do not over-torque during installation, as this can distort the insert or damage the parent material. After seating, remove the drive tang using an appropriate tang break-off tool if required by the insert design.
