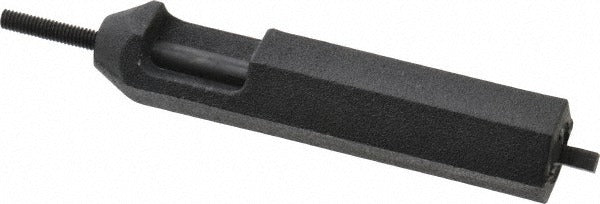

Heli-coil 3747-4 Thread Insert Tool M4 X 0.70

Product Description

The HELI-COIL 3747-4 is a hand installation tool designed for installing M4 x 0.70 metric coarse thread inserts into prepared parent material. The tool engages the tang of the wire thread insert and winds it into a tapped hole, creating a durable threaded interface in aluminum, cast iron, magnesium, plastics, and other materials with stripped or damaged threads. This is a manual tool intended for use without power equipment, giving the installer direct torque feel during the insertion process. Technicians working in HVAC equipment, electrical enclosures, engine components, and general mechanical assemblies use this tool when restoring or reinforcing M4 threaded holes.

This tool is suited for light industrial, field repair, and shop applications wherever M4 x 0.70 metric coarse thread inserts are required. Common scenarios include thread repair on HVAC units, compressors, motor housings, and control panel enclosures where the original threads have failed or where a stronger thread form is being installed in softer base material. The manual design makes it appropriate for low-volume installations and precision-sensitive assemblies where power tools could risk overdriving the insert.

Key Features

• Sized specifically for M4 x 0.70 metric coarse thread inserts
• Manual hand tool design provides tactile feedback during insert installation
• Compatible with standard HELI-COIL wire thread insert installation process
• No power source required - suitable for field and bench use
• Compact form factor for access in confined spaces

Compatibility

Designed for use with M4 x 0.70 metric coarse wire thread inserts as part of a standard thread repair or thread reinforcement system.

Installation Notes

Installation should be performed by a qualified technician familiar with thread insert systems. Ensure the parent material has been properly tapped to the correct HELI-COIL tap drill size before inserting. Power down and de-energize any equipment before performing thread repair on electrical or mechanical assemblies. Do not apply excessive torque during installation - the tool is designed for hand operation only.
