Heli-coil 3747-14 Thread Insert Tool M14 X 2.00

Product Description

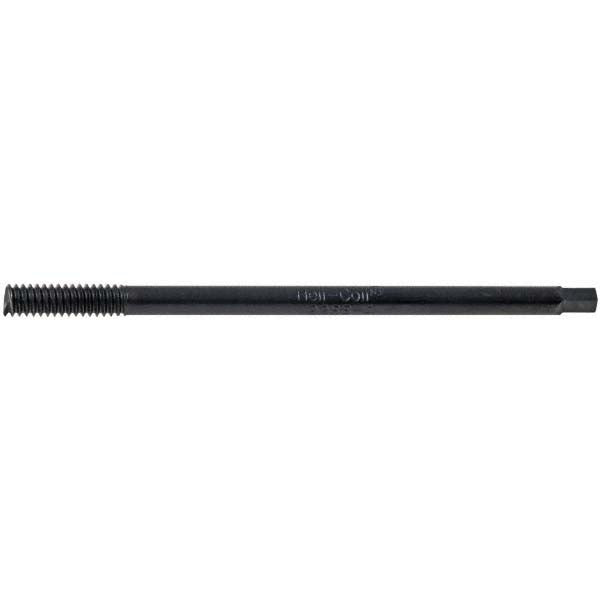

The HELI-COIL 3747-14 is a hand installation tool designed for driving threaded wire inserts into pre-tapped holes. It accepts M14 x 2.00 metric coarse inserts and delivers the controlled torque needed to seat each insert flush and true without damaging the surrounding bore. The tool is used by mechanics, machinists, and maintenance technicians working on thread repair and thread reinforcement applications in metal components. It is the correct driver for HELI-COIL inserts in the M14 x 2.00 metric coarse thread standard.

This tool is suited for bench work and field repair where power installation equipment is not practical or required. It is commonly used in automotive, industrial, and general metalworking environments when restoring stripped or damaged threads to full load-bearing capacity. Hand installation tools of this type are appropriate for low-volume insert work, prototype builds, and service applications where one or a few inserts are installed per job.

Key Features

• Sized specifically for M14 x 2.00 metric coarse thread inserts
• Hand-operated design allows controlled, feel-based installation without power tools
• Insert tool type provides positive engagement with the insert tang during drive-in
• Compatible with the HELI-COIL metric coarse thread insert system
• Compact form factor suitable for field service and bench repair

Compatibility

Designed for use with HELI-COIL threaded wire inserts in the M14 x 2.00 metric coarse thread size. Intended for hand installation applications within the HELI-COIL insert system.

Installation Notes

This tool is installed by machinists, mechanics, or maintenance technicians performing thread repair. Before use, ensure the tapped hole has been prepared to the correct HELI-COIL tap specification for M14 x 2.00. Apply steady hand pressure and consistent rotation to seat the insert to the proper depth. Do not use impact drivers or power tools with this hand installation tool.
