Heli-coil 3724-12 Thread Insert Tool 3/4-10 Unc

Product Description

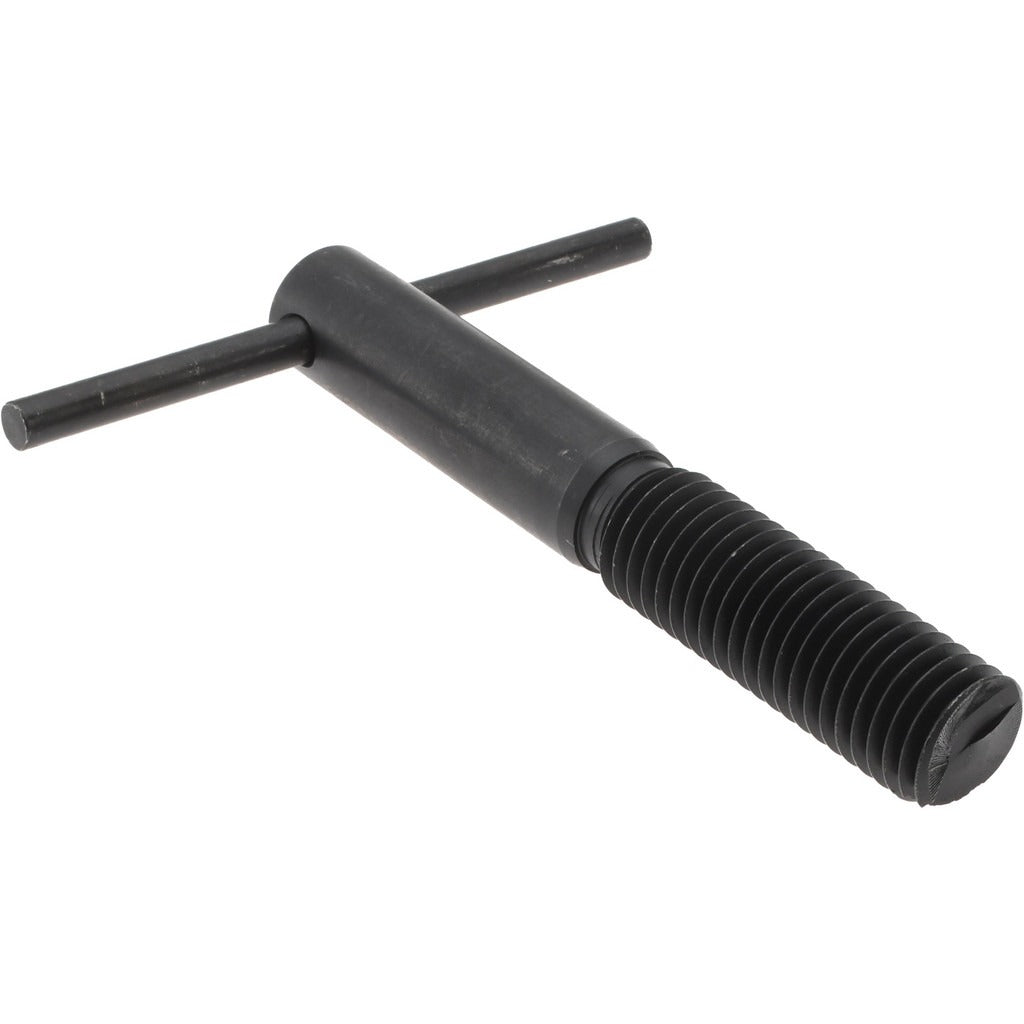

The HELI-COIL 3724-12 is a hand installation tool designed for driving threaded wire inserts into prepared holes. Built around a Type III threaded mandrel, it engages the insert tang and winds the coil into the tapped bore without power tools. The tool covers 3/4-10 UNC thread size and accepts both free-running and locking insert styles. At 4-7/8 inches in overall length with a 4-inch spinner diameter, it gives a mechanic solid grip and controlled torque during installation. Maintenance technicians, millwrights, and field service pros use this tool wherever stripped threads need to be rebuilt to original spec.

This tool is used in repair and overhaul work on threaded bores that have been re-tapped to accept HELI-COIL wire inserts. Typical applications include machinery frames, engine components, structural aluminum, and any substrate where thread damage requires a durable insert repair. The 3/4-10 UNC designation covers coarse-thread fastener applications common in heavy equipment, manufacturing fixtures, and general industrial maintenance. Because it is a hand tool, it suits situations where a controlled, torque-sensitive installation is preferred over a power driver.

Key Features

• Type III threaded mandrel design for precise insert engagement and controlled wind-in
• Compatible with both free-running and locking HELI-COIL insert styles at 3/4-10 UNC
• 4-7/8 inch overall length provides working clearance in most repair setups
• 4-inch spinner diameter allows firm hand grip and steady installation torque
• UNC thread standard suits the most common coarse-thread fastener applications in industrial and mechanical work

Compatibility

Designed for use with 3/4-10 UNC free-running and locking wire thread inserts requiring a Type III threaded mandrel for hand installation.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician familiar with thread insert repair procedures. Before use, verify the host bore has been drilled and tapped to the correct HELI-COIL insert tap size for 3/4-10 UNC. Wind the insert flush to one thread below the surface, then break off the drive tang using a tang break-off tool. Do not apply excessive side load to the mandrel during installation, as this can distort the insert coil.
