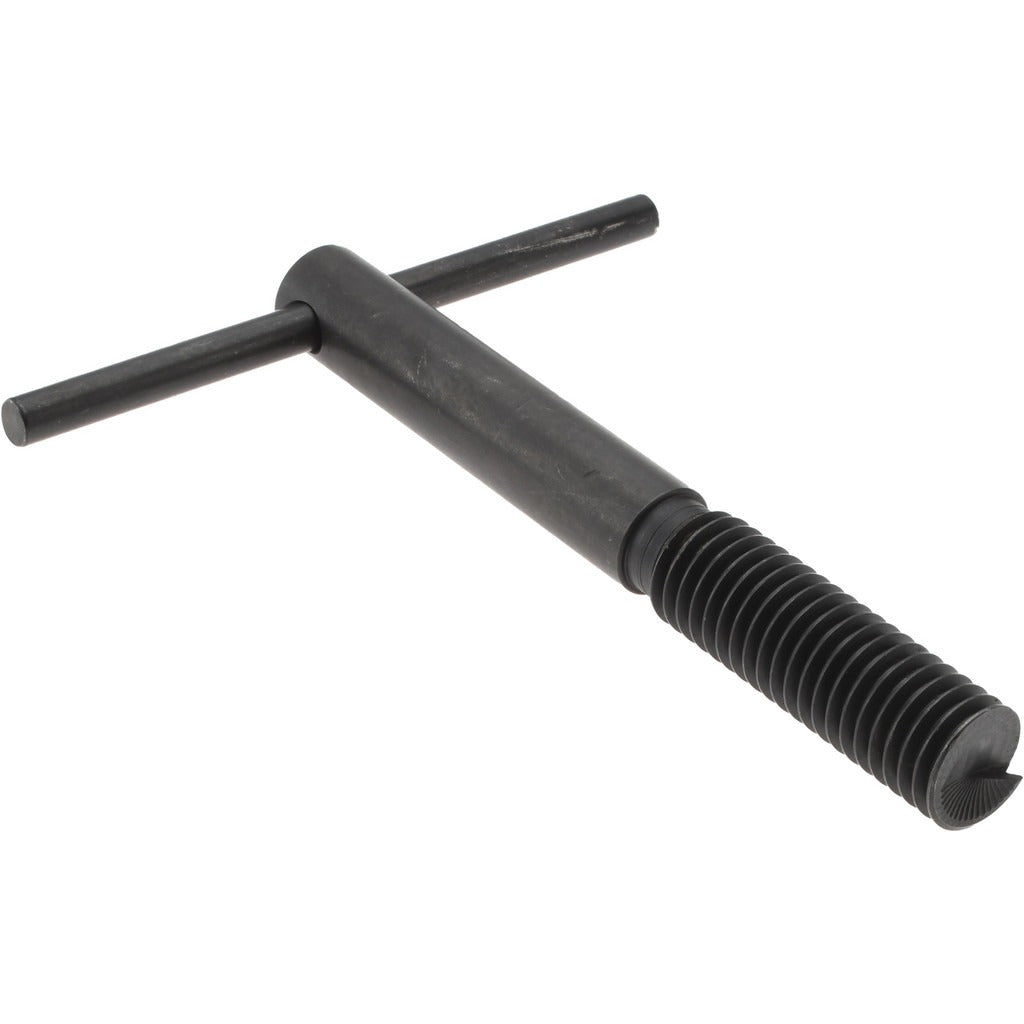

Heli-coil 3724-10 Thread Insert Tool 5/8-11 Unc

Product Description

The HELI-COIL 3724-10 is a hand installation tool designed for setting threaded wire inserts into prepared holes. It uses a Type III threaded mandrel to engage and drive the insert flush or below the surface of the parent material. This tool covers the 5/8-11 UNC thread size and accepts both free-running and locking insert styles. The overall length is 4-7/8 inches with a 4-inch spinner diameter, giving the technician adequate leverage for controlled, hand-driven installation. It is the appropriate tool for any application requiring HELI-COIL or compatible helical thread inserts in that thread size.

This tool is used wherever a 5/8-11 UNC threaded insert must be installed by hand into a tapped or pre-formed hole. Typical applications include equipment repair, thread restoration, and original assembly in automotive, industrial, and mechanical maintenance settings. Machinists, maintenance technicians, and field service personnel use this tool when power installation is not appropriate or available. The hand-drive design provides tactile feedback during installation to avoid overdriving the insert.

Key Features

• Type III threaded mandrel design for positive engagement with the insert during installation
• Compatible with both free-running and locking helical thread inserts in 5/8-11 UNC
• Overall length of 4-7/8 inches provides sufficient torque leverage for hand operation
• 4-inch spinner diameter supports smooth, controlled drive strokes
• UNC thread standard ensures dimensional consistency with standard unified coarse fastener applications

Compatibility

Designed for use with free-running and locking thread inserts in the 5/8-11 UNC thread size. Consult insert manufacturer documentation to confirm tool-to-insert compatibility before use.

Installation Notes

Installation is performed by hand and does not require power tools. Ensure the tapped hole is clean and free of debris before engaging the insert on the mandrel. Thread the insert onto the mandrel, align it with the hole, and rotate the spinner until the insert is seated at the correct depth. A tang break-off tool may be needed after installation if the insert type includes a driving tang.
