Heli-coil 1227-16 Thread Insert Extracting Tool

Product Description

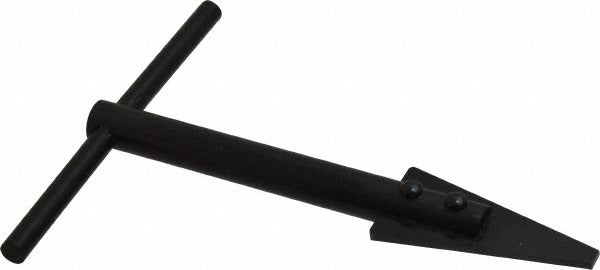

The HELI-COIL 1227-16 is a thread insert extracting tool designed to remove tanged helical coil inserts without damaging the parent material or the surrounding threads. It covers a nominal diameter range of 7/16 inches through 1 inch, making it a versatile single-tool solution for a wide span of insert sizes encountered in field and shop repair work. Machinists, maintenance technicians, and trade professionals use this tool when an installed tanged insert needs to be backed out cleanly during a rework or repair operation. The tool engages the tang of the insert and transfers rotational force directly, minimizing the risk of thread damage in the host material.

This extracting tool is suited for use on industrial equipment, HVAC mechanical assemblies, fluid system components, and any application where helical thread inserts have been installed in tapped holes. It is most commonly used in repair and maintenance shops, on production floors, and in field service scenarios where a stripped or misinstalled insert must be removed before a new one is driven in. The 7/16 inch to 1 inch range covers common fastener sizes used across mechanical trades.

Key Features

• Covers nominal diameters from 7/16 inches to 1 inch in a single tool
• Compatible with tanged helical coil inserts
• Designed to extract inserts without damaging the tapped hole or parent material
• Compact form factor suitable for both bench work and field repair
• Lightweight at 0.67 pounds for easy handling

Compatibility

Designed for use with tanged helical coil thread inserts in the 7/16 inch to 1 inch nominal diameter range, equivalent to M11 through M24 metric sizing.

Installation Notes

This tool is used by machinists and mechanical technicians during thread insert removal procedures. Before extracting an insert, ensure the fastener has been fully removed from the hole and the work piece is secured. Engage the tool onto the tang of the insert and apply steady rotational force in the counterclockwise direction to back the insert out. Avoid excessive side loading on the tool shank, which can cause the tang to break off inside the bore.
