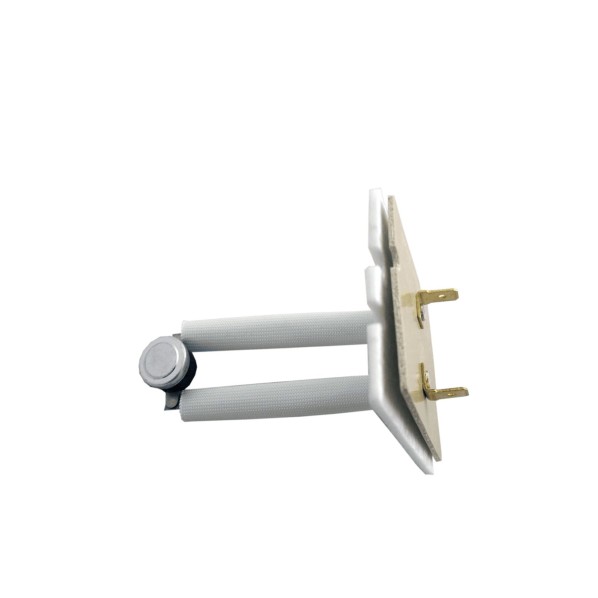

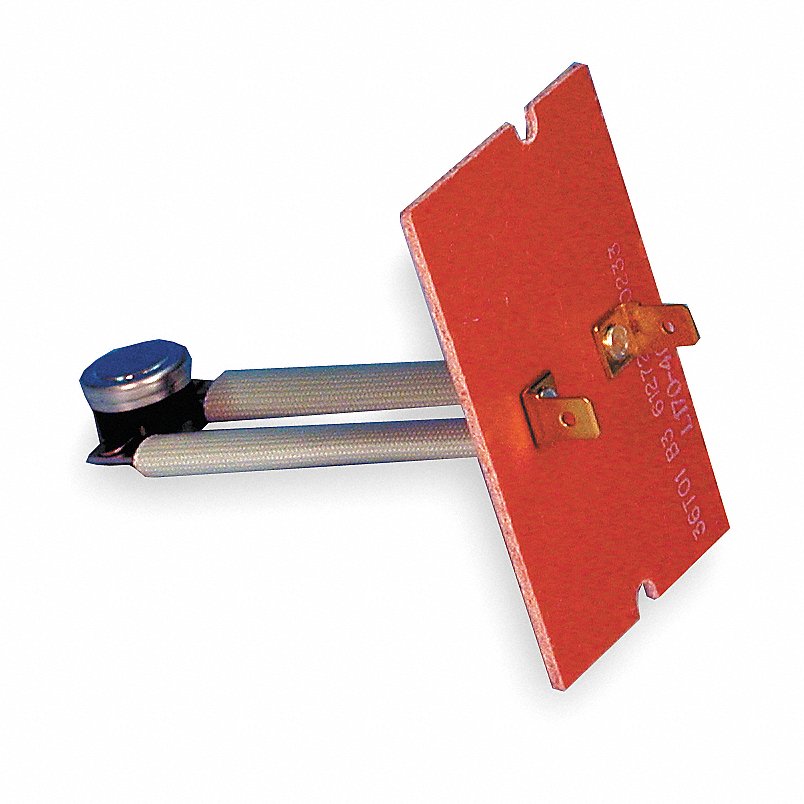

HEATINGVARIOUSMFG-GENERIC SHL513 Plenum Thermostat

Product Description

The HEATINGVARIOUSMFG-GENERIC SHL513 Plenum Thermostat is a bimetal temperature control device. This thermostat is designed for use in furnace plenum areas to help prevent overheating. It can shut down the furnace at high temperatures and restart it when temperatures return to normal. With a Single Pole Single Throw (SPST) contact form, this device provides a straightforward solution for effective temperature regulation.

• Economical and versatile design
• Direct OEM replacement part
• Opens at one hundred seventy degrees Fahrenheit and closes at one hundred thirty degrees Fahrenheit

Product Highlights

The SHL513 ensures safety and reliability with UL and CSA approvals.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: SHL513

Technical Specifications

• Open Temperature: 170 degrees Fahrenheit
• Close Temperature: 130 degrees Fahrenheit
• Board Width: 1.88 inches
• Board Height: 2.94 inches
• Insertion Length: 3.12 inches
• Contact Form: SPST
• Resistive Amps at 120V: 15A
• Resistive Amps at 240V: 10A
