HEATINGVARIOUSMFG-GENERIC RSS498013 Adjustable Air Pressure Switch

Product Description

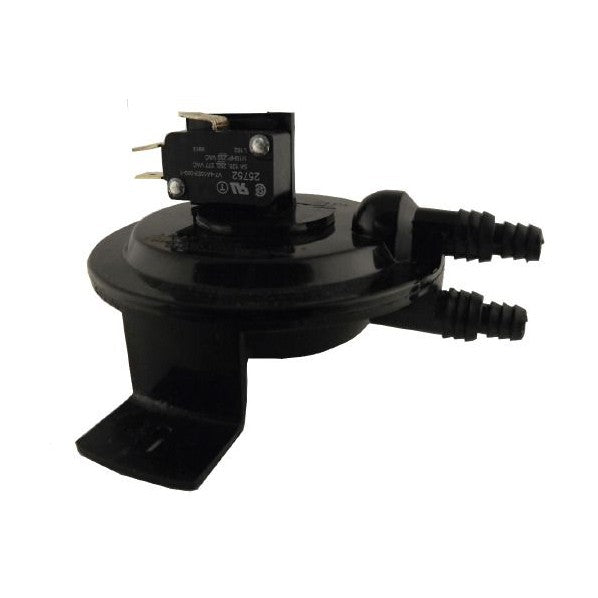

The HEATINGVARIOUSMFG-GENERIC RSS498013 is an adjustable air pressure sensing switch kit. It is suitable for residential and light commercial applications. This product activates on pressure rise. It includes barbed fittings for one-fourth inch ID or three-eighths inch ID flexible tubing connectors. This switch is designed for accuracy and is less affected by temperature changes. It comes with necessary mounting hardware and an adjustment tool for straightforward installation and calibration.

• Adjustable set points
• Factory set to activate on pressure rise
• Includes mounting hardware and adjustment tool

Product Highlights

This air pressure switch is ideal for use in furnaces, electric air cleaners, and humidifiers.

Product Information

Standard Information

• Brand: Supco
• Country of Origin: Not specified

Technical Specifications

• Pressure Settings: 1.0 to 4.0 W.C.
• Contact Rating: 5 Amp at 120 to 277 VAC Non-Inductive
• Configuration: SPDT
• Operating Temperature Range: -40°F to 190°F
