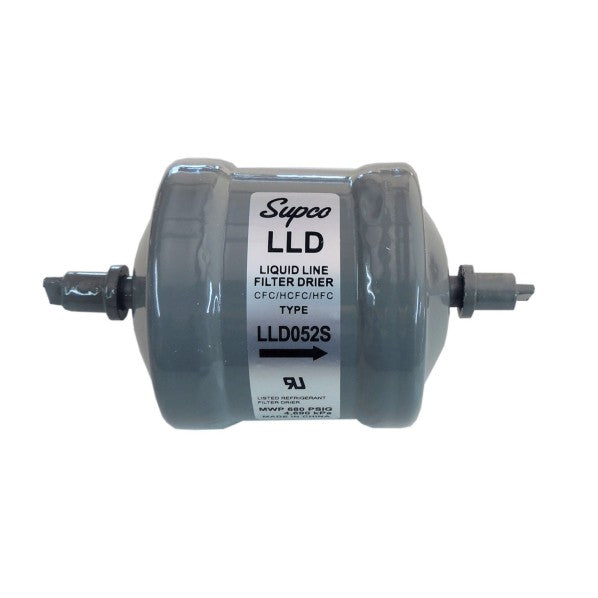

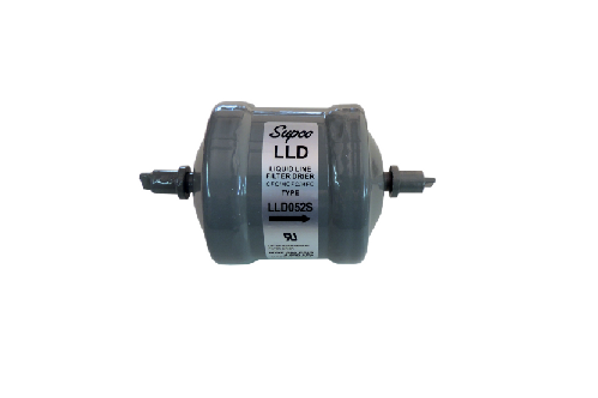

HEATINGVARIOUSMFG-GENERIC LLD052S Liquid Line Filter Drier

Product Description

The HEATINGVARIOUSMFG-GENERIC LLD052S is a liquid line filter drier for use with various refrigerants, including CFC, HCFC, and HFC types. This product has a filtration capacity of five cubic inches and features a quarter-inch ODF connection on both ends or a quarter-inch SAE connection, which depends on the source. It effectively removes acids and moisture, which helps maintain the performance and longevity of refrigeration and air conditioning systems.

• Compatible with refrigerants including R290.
• Corrosion-resistant epoxy powder paint finish.
• Shock-resistant steel construction.

Product Highlights

This filter drier is essential for maintaining system efficiency and reliability in refrigeration and air conditioning applications.

Product Information

Standard Information

• Country of Origin: China
• Weight: 2 lbs

Technical Specifications

• Connection Size: 1/4 inch
• Connection Type: ODF or SAE (depending on source)
• Desiccant Blend: Activated alumina with molecular sieve
• Filtration: 40 microns
• Maximum Working Pressure: 600 psig (for sizes 03-16), 500 psig (for 30-75 cubic inch)
• Volume: 5 cubic inches
