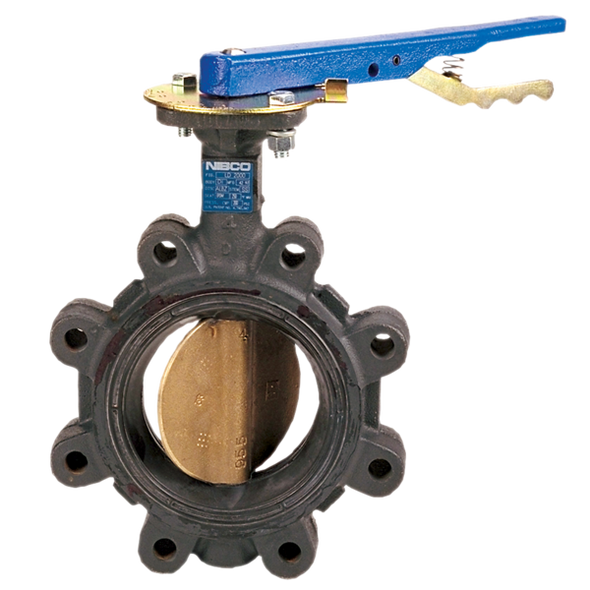

HEATINGVARIOUSMFG-GENERIC LD2000 Butterfly Valve

Product Description

The HEATINGVARIOUSMFG-GENERIC LD2000 is a lug type butterfly valve engineered for commercial and light industrial uses. It provides bi-directional dead-end service without needing a downstream flange. This butterfly valve guarantees bubble-tight shutoff at two hundred PSI. It is ideal for HVAC systems, vacuum services, and potable water systems. The LD2000 design conforms to industry standards including MSS SP-67 and API 609. Please note, it is not suitable for steam service.

• Offers bi-directional dead-end service.
• Ensures bubble-tight shutoff at two hundred PSI.
• Approved for HVAC and potable water systems.

Product Highlights

This butterfly valve is designed for reliability and durability in demanding environments.

Product Information

Standard Information

• Valve Pressure Rating: 200 psi
• Temperature Rating: 225°F continuous, 250°F intermittent service

Technical Specifications

• Body Style: Lug style
• Seat Liner: EPDM molded-in (small diameter) or cartridge (large diameter)
• Disc Material: Aluminum bronze
• Stem Material: Stainless steel with copper/bronze bushings
• Operating Mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator, and pneumatic/electric automation
• Standards: MSS SP-67, MSS SP-25, API 609, U.S. Coast Guard Category A, California Health and Safety Code Section 116875, Vermont Act 193
